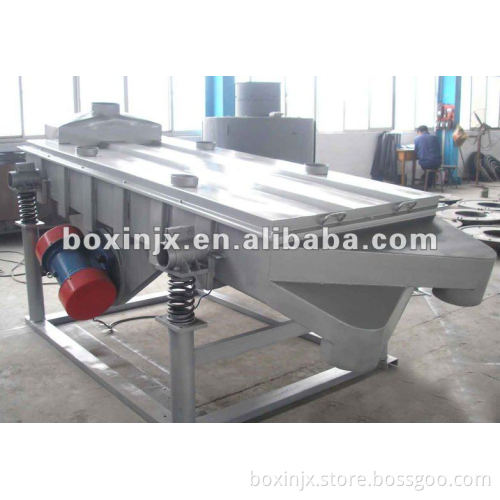

pellets vibrating screen

Specifications This machine is used for flitering plastic pellets into same size.

Vibration filter sieve has one, double and thris type for differnet requirements.   Vibration filter sieve is one of our main products, is now widely accepted by our customers from ceramic, food, chemical and electronic industries. our machine is made from high quality stainless steel to ensure there is no contamination to the products while processing. The sieve screen ranges from 30 mesh to 325 mesh, the vibrating motor is made by our own factory to make sure the whole machine high efficiency. our vibration filter sieve can be used in both wet liquid and dry form, please tell us about your production requirements, we are pleased to give you a professional selection for sieveing separation.   Technical Parameters

Model	Screening Surface Size(mm)	Sieve Pore Size (mesh/in)	Dual Amplitude (mm)	Motor Power (kw)	Vibration Direction Angle (°)
DZSF520	500×2000	2~200	4~7	2×0.4	45~60
DZSF525	500×2500		4~8	2×0.4~2×0.75	45~60
DZSF1020	1000×2000		4~8	2×0.75~2×1.5	45~60
DZSF1025	1000×2500		5~8	2×0.4~2×0.75	45~60
DZSF830	800×3000		6~8	2×0.75~2×1.5	45~60
DZSF1030	1000×3000		6~8	2×0.75~2×1.5	45~60
DZSF1224	1200×2400		6~8	2×0.75~2×1.5	45~60
