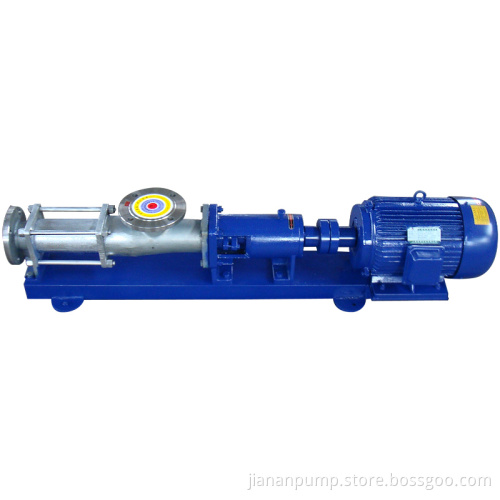

Stainless Steel Single Screw Pump

1. Simple Structure
2. Working Safely and Reliable
3. Convenient to Use and Repair
4. Pressure Stability
G Type Mono Pump
Features and Benefits:
1, Can Transport The Medium Which Contain Air Under a Negative Pressure.
2, Good Self-Suction Ability
3, Can Transport The Liquid Containing Fibers and Solid Grains;
4, Can Do Transportation a Reversed Direction;
5, Small Mechanical Vibration, No Pulsation, Stable Movement
6, Highly Viscous Medium Permit

Technical Parameter:
Diameter: 32 150mm
Flow: ≤ 45m3/H
Head: ≤ 120m
Working Temperature: ≤ 80° C
Solid Grains: ≤ 60% Size of Outlet
Permitted Working Pressure: 12 Bar
Permitted Testing Pressure: ≤ 25 Bar
Typecapacitypressurepowerinletoutlet
G20-10.8m3/H0.6mpa0.75kw25mm25mm
G20-20.8m3/H1.2mpa1.5kw25mm25mm
G25-12m3/H0.6mpa1.5kw40mm32mm
G25-22m3/H1.2mpa2.2kw40mm32mm
G30-15m3/H0.6mpa2.2kw50mm40mm
G30-25m3/H1.2mpa3kw50mm40mm
G35-18m3/H0.6mpa3kw65mm50mm
G35-28m3/H1.2mpa4kw65mm50mm
G40-112-20m3/H0.6mpa4kw80mm65mm
G40-212-20m3/H1.2mpa5.5kw80mm65mm
G50-114-20m3/H0.6mpa5.5kw100mm80mm
G50-214-20m3/H1.2mpa7.5kw100mm80mm
G60-122m3/H0.6mpa11kw125mm100mm
G60-222m3/H1.2mpa15kw125mm100mm
G70-138m3/H0.6mpa11kw150mm125mm
G70-238m3/H1.2mpa18.5kw150mm125mm
G85-156m3/H0.6mpa15kw150mm150mm
G85-256m3/H1.2mpa30kw150mm150mm
G105-1100m3/H0.6mpa30kw200mm 200mm
G105-2100m3/H1.2mpa55kw 200mm 200mm
G135-1150m3/H0.6mpa45kw 250mm 250mm
G135-2150m3/H1.2mpa90kw 250mm 250mm

Material:
Iron, Stainless Steel
