Singe Rotary Screw Pump

1. Simple structure
2. Working safely and reliable
3. Convenient to use and repair
4. Pressure stability

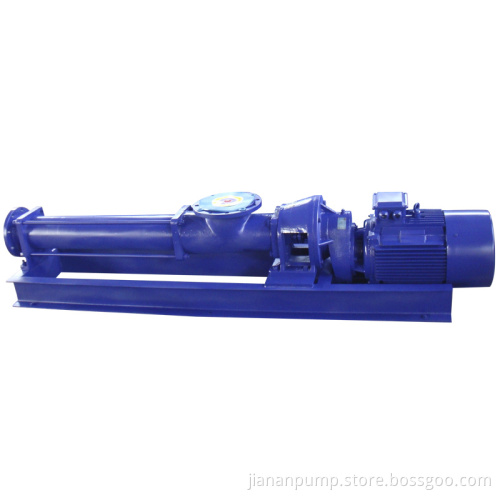

G type Mono Pump
Features and benefits:
1, Can transport the medium which contain air under a negative pressure.
2, Good self-suction ability
3, Can transport the liquid containing fibers and solid grains;
4, Can do transportation a reversed direction;
5, Small mechanical vibration, no pulsation, stable movement
6, Highly viscous medium permit

Technical parameter:
Diameter: 32 150mm
Flow: ≤ 45m3/h
Head: ≤ 120m
Working temperature: ≤ 80° C
Solid grains: ≤ 60% size of outlet
Permitted working pressure: 12 bar
Permitted testing pressure: ≤ 25 bar
TypeCapacityPressurePowerInletOutlet
G20-10.8m3/h0.6MPa0.75KW25MM25MM
G20-20.8m3/h1.2MPa1.5KW25MM25MM
G25-12m3/h0.6MPa1.5KW40MM32MM
G25-22m3/h1.2MPa2.2KW40MM32MM
G30-15m3/h0.6MPa2.2KW50MM40MM
G30-25m3/h1.2MPa3KW50MM40MM
G35-18m3/h0.6MPa3KW65MM50MM
G35-28m3/h1.2MPa4KW65MM50MM
G40-112-20m3/h0.6MPa4KW80MM65MM
G40-212-20m3/h1.2MPa5.5KW80MM65MM
G50-114-20m3/h0.6MPa5.5KW100MM80MM
G50-214-20m3/h1.2MPa7.5KW100MM80MM
G60-122m3/h0.6MPa11KW125MM100MM
G60-222m3/h1.2MPa15KW125MM100MM
G70-138m3/h0.6MPa11KW150MM125MM
G70-238m3/h1.2MPa18.5KW150MM125MM
G85-156m3/h0.6MPa15KW150MM150MM
G85-256m3/h1.2MPa30KW150MM150MM
G105-1100m3/h0.6MPa30KW200MM 200MM
G105-2100m3/h1.2MPa55KW 200MM 200MM
G135-1150m3/h0.6MPa45KW 250MM 250MM
G135-2150m3/h1.2MPa90KW 250MM 250MM

Material:
Iron, stainless steel
