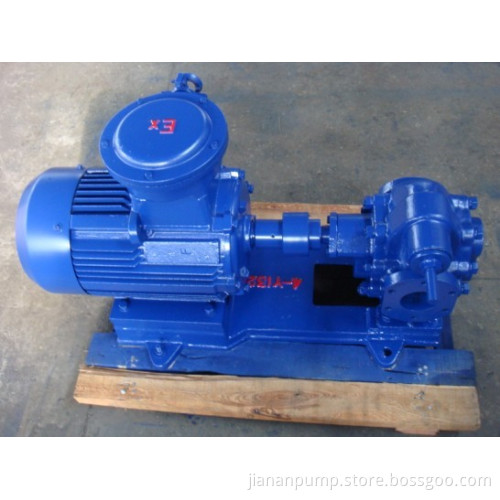

Stainless Steel Gear Pump

KCB, 2CY Gear Pump
1, temperature below 300 C
2, oil delivery system
3, With safety valve
4, ISO Standard
Description
KCB, 2CY series gear pumps
It applies to delivering non-corrosive lubricating-lil or equivalent liquid without solid pareicles and fibres at temperature below 300º C and with the viscosity of 5× 10-6~1.5× 10-3m2/S(5-5000cSt).

Applacation It can give performance as transferpump or booster pump in oil delivery system. It can be also applied as a fuel pump for dilivery system, pressurization and injection in fuel supply system and in all industry fields as lubricating pump.
Structure Features KCB, 2CY series gear pumps are mainly composed of gears, axles pump body, pump, cap safety valve and axle-end seals etc. The heattreated gears have the advantage of higher hardness and intensity, and rotate with the axles inside the replaceable bearing sleeves. All of pump's parts can be lubricated by delivered medium when working.

The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load and wear on bearings bear the least torque force and reduces load and wear on bearings in order to raise pump's efficiency.
Technical parameters

Capacity 18.3~2500 liter/min
Pressure of discharge: 0.33~2.4 Mpa
Medium temp within 300OC
Self-priming head: 3~4.5m
Viscosity: Below 5000c. S. t
