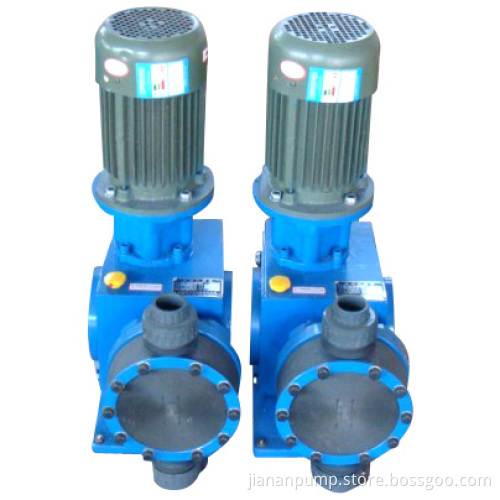

Mechanical Diaphragm Chemical Dosing Pump
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shanghai, China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Diaphragm dosing pump
JXM-A 237/1
Main Specification
The capacity 237LPH
The maximum pressure 1.0MPA
Measuring accuracy reaches to-/+1%
Temperatures of liquid shall be between-10 degree to 40 degree
Max. Suct: 2m
Motor: Standard 220V/380V, 50Hz
Main features
Mechanical Actuated diaphragm
Changeable eccentric drive
Power-off seal, no leakage, with security delivery
Small size in simple structure
Control
Manual adjustment of the stroke
Stroke actuator(DCK controller)
Digital controller(JSK-II controller)
Others
It can be used to transport the goods which is high viscosity, corrosive or dangerous
Diaphragm rupture detection system
JXM-A 237/1
Main Specification
The capacity 237LPH
The maximum pressure 1.0MPA
Measuring accuracy reaches to-/+1%
Temperatures of liquid shall be between-10 degree to 40 degree
Max. Suct: 2m
Motor: Standard 220V/380V, 50Hz
Main features
Mechanical Actuated diaphragm
Changeable eccentric drive
Power-off seal, no leakage, with security delivery
Small size in simple structure
Control
Manual adjustment of the stroke
Stroke actuator(DCK controller)
Digital controller(JSK-II controller)
Others
It can be used to transport the goods which is high viscosity, corrosive or dangerous
Diaphragm rupture detection system
