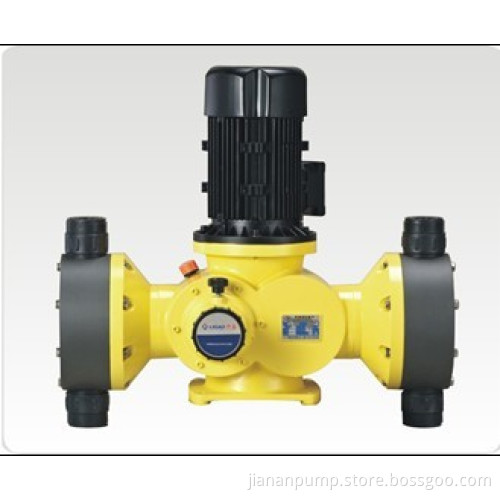

Two Heads Plunger Dosing Pump (2J-X)

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shanghai, China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

Detailed Product Description

1. Flow: 0-300 lph
2. Pressure: 0-500 Bar
3. Power: 370W, 550W, 220V/380V/400V/110V, 50/60Hz

Product Description
Flow: 0-300 lph
Pressure: 0-500 Bar
Power: 370W, 550W, 220V/380V/400V/110V, 50/60Hz
Drive System: 2 and 3 phase motor, Anti-explosion motor, Frequency conversion motor
Flow Control: Manual operation
Protection degree: IP55

Work Condition
Envitonment temperature: -30° C --- 90° C

Package
Material: Wooden case
Measurement: 58 x29.5 x 49 cm
Gross Weight: 43kgs
Material
Part
Material
Pump head
SUS304, SUS316, SUS304 + ceramics plunger, PVC + ceramics plunger
Diaphragm
PTFE
Valve
SUS304, SUS316, PVC, PTFE
Valve ball
Ceramic, ZrO2, SUS304, SUS316, Silicon Dioxide

Features
Piston action, can be maked as the high-pressure pump.
Simple structure, easy maintenance, also with competitive price.
The diameter of the piston can be very small, normally between 3-200 mm.
Using insulated, heated or cooled cylinder of pump to control the temperature of medium
