Anti-Corrosive Chemical Process Pump (IH)
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shanghai, China |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description

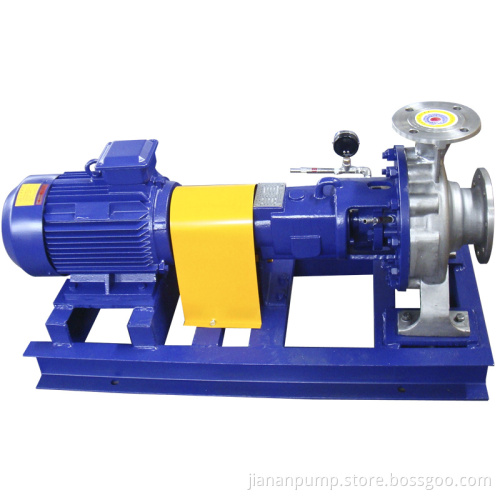

IH Series Industrial Chemical Centrifugal Pump
1. Capacity: 0.3 to 360 liters/s
2. Head: 8.5~160m
3. According to ISO2858
Single stage end suction cantilever type centrifugal pump.
Product Introduction
I H series chemical pump is single-stage pump is end suction cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar to water and without solid particles.
1. Stable performance, reliable operation;
2. Suitable for corrosive fluid
3. Coupling connection construction: Convenient for maintenance and trouble shooting.
4. Optional open / Semi-open/Closed impeller
Unique advantage
Very competitive price, high quality, small MOQ, fast delivery
Application:
1. Municipal Project, Sewage Project, Instruction Project;
2. Transportation of the chemical fluid;
3. Transportation in Hospital, hotel,
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering;
5. Transportation of the factory and contaminated water;
6. Metallurgy
7. Papermaking, mill, textile, food processing plant, chemical industry, electric utility, deep mines, etc;
8. Wine and sugar industry;
Features: Solids Handling Impeller, Exclusive Corrosive-Resistant Seal, Removable Rotating Assembly.
Specification:
1. Inlet/Outlet
2''(50mm), 3''(80mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm)
2. Impeller Diameter
125mm-450mm
3. Rotary Speed
960RPM-2900 RPM
4. Flow Rates
6.3m3/h-400m3/h
27GPM-1800GPM
5. Head
5m-125m
6. Horsepower
1HP-120HP
7. N. W
45KG-289KG
8. G. W
60KG-310KG
9. Solid Passing
20.63mm-50mm
10. Material
Cast iron, ductile iron, stainless steel, cast steel, bronze
11. Diesel Driving
Or to be stated
12. Drive Variation
/
13 Package
Exporting plywood case
14. Certification
ISO9001: 2000
Operation condition:
1. The temperature of medium no more than 105° C, the density of medium is 1.0~1.3*103Kg/m3, pH is within5~9
2. Max diameter of solid should be less than 50mm
3. Max working pressure≤ 1.6Mpa
4. Volume ratio of solids in the medium ≤ 2%
1. Capacity: 0.3 to 360 liters/s
2. Head: 8.5~160m
3. According to ISO2858
Single stage end suction cantilever type centrifugal pump.
Product Introduction
I H series chemical pump is single-stage pump is end suction cantilever type centrifugal pump, which is used to transport corrosive liquid with viscosity similar to water and without solid particles.
1. Stable performance, reliable operation;
2. Suitable for corrosive fluid
3. Coupling connection construction: Convenient for maintenance and trouble shooting.
4. Optional open / Semi-open/Closed impeller
Unique advantage
Very competitive price, high quality, small MOQ, fast delivery
Application:
1. Municipal Project, Sewage Project, Instruction Project;
2. Transportation of the chemical fluid;
3. Transportation in Hospital, hotel,
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering;
5. Transportation of the factory and contaminated water;
6. Metallurgy
7. Papermaking, mill, textile, food processing plant, chemical industry, electric utility, deep mines, etc;
8. Wine and sugar industry;
Features: Solids Handling Impeller, Exclusive Corrosive-Resistant Seal, Removable Rotating Assembly.
Specification:
1. Inlet/Outlet
2''(50mm), 3''(80mm), 4''(100mm), 6''(150mm), 8''(200mm), 10''(250mm), 12''(300mm)
2. Impeller Diameter
125mm-450mm
3. Rotary Speed
960RPM-2900 RPM
4. Flow Rates
6.3m3/h-400m3/h
27GPM-1800GPM
5. Head
5m-125m
6. Horsepower
1HP-120HP
7. N. W
45KG-289KG
8. G. W
60KG-310KG
9. Solid Passing
20.63mm-50mm
10. Material
Cast iron, ductile iron, stainless steel, cast steel, bronze
11. Diesel Driving
Or to be stated
12. Drive Variation
/
13 Package
Exporting plywood case
14. Certification
ISO9001: 2000
Operation condition:
1. The temperature of medium no more than 105° C, the density of medium is 1.0~1.3*103Kg/m3, pH is within5~9
2. Max diameter of solid should be less than 50mm
3. Max working pressure≤ 1.6Mpa
4. Volume ratio of solids in the medium ≤ 2%
