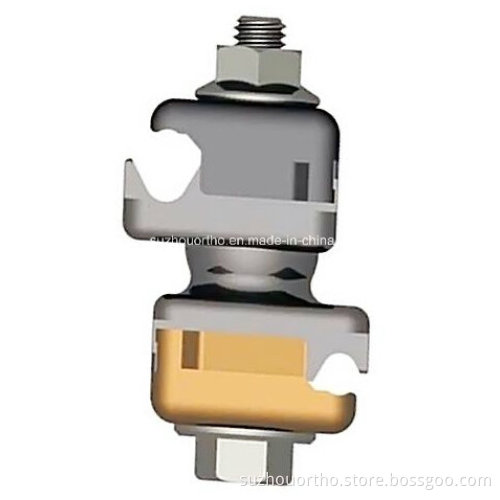

Orthopedic Jet-X Bar to Pin Clamp

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

Properties: Orthopedic Fixator,External Fixator, Bone fixator, Surgical fixator, Jet-X fixator, Tibia fixator, orthopedic instrument
Name: Jet-X Bar to Pin Clamp
Type: Smith-nephew
Brand : Ibesco
Ref: EF 61002001
Place of Origin: Jiangsu, China (Mainland)
Color: Yellow and Grey
Material: Aluminum Alloy
Orthopedic Jet-X Bar to Pin Clamp

Description:

The Mini Bar to Pin Clamp is designed to attach a
half pin to a composite bar. The design contains a
cartridge capture mechanism that allows snap-fit
assembly, but prevents passive release of pins or
bars during reduction. The design contains a ball
joint mechanism that allows multi-planar movement
in any direction up to 50° included and allows 360°
of rotation.
Orthopedic Jet-X Bar to Pin Clamp

Engineering Data:

Overall Width .780 Inches
Overall Length     .810 Inches
Total Rotation       360°
Total Angulations 50° Included
Overall Height 1.650 Inches
Tightening Nuts     8mm
Bar Attachment     6mm
Pin Attachment 4mm
Wrench Needed: 8mm

Package: Medical bag
Payment: T/T WESTUNION PAYPAL
Delivery: DHL, FEDEX, UPS, TNT, OCS, BY AIR, BY SEA.
External package: carton or wooden box
Service: OEM available
Application: Tibia fracture, Lower Limb fracture
Orthopedic Jet-X Bar to Pin Clamp
