Mini Double Pin Clamp

Get Latest Price

Payment Type:: T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T, Paypal, Western Union

Product Description

Properties: Orthopedic Fixator,External Fixator, Bone fixator, Surgical fixator, Jet-X fixator, Radius fixator, orthopedic instrument
Name: Jet-X Mini Double Pin Clamp
Type: Smith-nephew
Brand : Ibesco
Ref: EF 61001001
Place of Origin: Jiangsu, China (Mainland)
Color: Yellow and Grey
Material: Aluminum Alloy

Description:

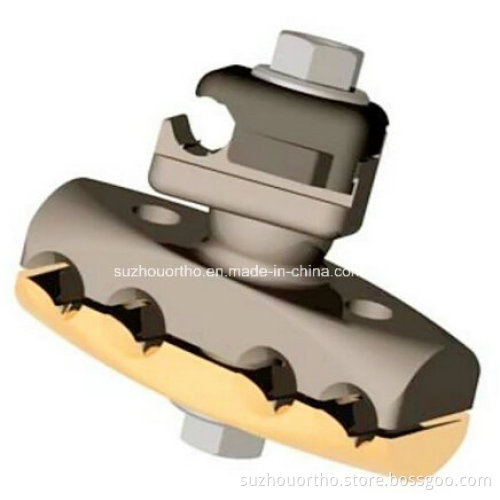

The Mini Double Pin Clamp is designed to attach two
half pins to a composite bar. The design contains a
cartridge capture mechanism that allows snap-fit
assembly, but prevents passive release of pins and a
bar during reduction. The design contains a ball joint
mechanism that allows multi-planar movement in any
direction up to 50° included and allows 360° of
rotation.
Mini Double Pin Clamp

Engineering Data:
Overall Width .780 Inches
Overall Length     1.800 Inches
Total Rotation       360°
Total Angulations 50° Included
Overall Height 1.701 Inches
Tightening Nuts   8mm
Bar Attachment     6mm
Pin Attachment     4mm
Wrench Needed: 8mm
Used With:
10.5mm Bar, ILIZAROV Composite Rings, 10mm Wrench,
A/O T-Handle Connector with 10mm Hex
Mini Double Pin Clamp

Package: Medical bag
Payment: T/T WESTUNION PAYPAL
Delivery: DHL, FEDEX, UPS, TNT, OCS, BY AIR, BY SEA.
External package: carton or wooden box
Service: OEM available
Application: Distal Radius fracture
