High-Speed First Aid Adhesive Plaster Manufacturing Production Line
- Payment Type:
- L/C, T/T, D/P, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu Suzhou |
|---|---|
| Payment Type: | L/C, T/T, D/P, Western Union |
Product Description
Product Description

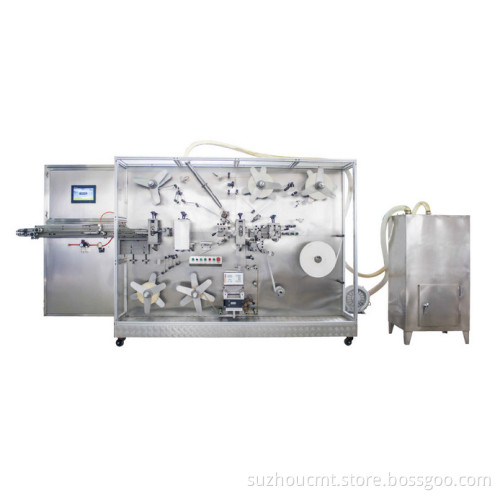

Comprises: a main-machine, a waste collection equipment
Production capacity: 2500 pieces per minute
The precision of the product: about±0.5mm
Power supply: 380V50HZ
The total energy consumption: 9KW
Outline size: 3930mm (L) * 1050mm (wide) x 2150mm (high)
Waste collect: 700mm (L) * 550mm (wide) x 1400mm (high)
Weight: 1600KG
The use of materials size: ODΦ400mm, (the length of about 1500m), ID: 75mm,Width≤135mm
Air pressure: ≥0.7Mpa
Noise: ≤75db
This equipment is a high-speed automatic assembly line, which adopts the PLC control system from Taida Company. It features in excellent performance, high degree of automation, and easy operation.
1. EPC system : edge position control automatically
2. Automatic deviation rectifier: it can automatically correct the position of adhesive tape during the operation process.
3. Automatic warming device: it can give an alarm when the adhesive tapes and accessories are exhausted and inform people to change them immediately.
4. Automatic detection of absorbent cotton position: this device can automatically detect the position of absorbent cotton with a high speed. It can send an alarm and automatically adjust the absorbent cotton position when it is skewed.
5. The heat-seal device can fully meets customer demand and is easy to operate.
6. Detection of the joint part after the change of accessories: this device can automatically check and correct the joint part, which can increase the level of automation.
7. Pressure control system of cutter and heat-seal device: users can directly see the pressure, which improve the product quality and is easy to operate.
8. Waste recovery device: this device can put offcut into to scrap storage bin.
9. Control cabinet.
10. Receiving device: this device can automatically peel and collect the core paper.
11. The electric appliance part: equipment PLC and servo system are all OMRON products, ensure the stable operation of the equipment, the display is used in 10.1 inch screen.
Main Equipments:
Production capacity: 2500 pieces per minute
The precision of the product: about±0.5mm
Power supply: 380V50HZ
The total energy consumption: 9KW
Outline size: 3930mm (L) * 1050mm (wide) x 2150mm (high)
Waste collect: 700mm (L) * 550mm (wide) x 1400mm (high)
Weight: 1600KG
The use of materials size: ODΦ400mm, (the length of about 1500m), ID: 75mm,Width≤135mm
Air pressure: ≥0.7Mpa
Noise: ≤75db
This equipment is a high-speed automatic assembly line, which adopts the PLC control system from Taida Company. It features in excellent performance, high degree of automation, and easy operation.
1. EPC system : edge position control automatically
2. Automatic deviation rectifier: it can automatically correct the position of adhesive tape during the operation process.
3. Automatic warming device: it can give an alarm when the adhesive tapes and accessories are exhausted and inform people to change them immediately.
4. Automatic detection of absorbent cotton position: this device can automatically detect the position of absorbent cotton with a high speed. It can send an alarm and automatically adjust the absorbent cotton position when it is skewed.
5. The heat-seal device can fully meets customer demand and is easy to operate.
6. Detection of the joint part after the change of accessories: this device can automatically check and correct the joint part, which can increase the level of automation.
7. Pressure control system of cutter and heat-seal device: users can directly see the pressure, which improve the product quality and is easy to operate.
8. Waste recovery device: this device can put offcut into to scrap storage bin.
9. Control cabinet.
10. Receiving device: this device can automatically peel and collect the core paper.
11. The electric appliance part: equipment PLC and servo system are all OMRON products, ensure the stable operation of the equipment, the display is used in 10.1 inch screen.
Main Equipments:
| NO. | NAME | MODEL | BRAND | QTY. | UNIT |
| 1 | Servo drive 750W | R88D-KN08H-ECT-Z | Omron | 7 | SETS |
| 2 | Servo motor 750W | R88M-K75030H-S2-Z | Omron | 7 | SETS |
| 3 | Switching power supply | S8JC-Z15024C | Omron | 1 | SET |
| 4 | Rotary encoder | E6B2-CWZ5C 1000P/R | Omron | 5 | SETS |
| 5 | Servo drive 400W | R88D-KN04H-ECT-Z | Omron | 2 | SETS |
| 6 | Servo motor 400W | R88M-K40030H-S2-Z | Omron | 2 | SETS |
| 7 | Electric power cable | R88A-CAKA005S | Omron | 9 | PCS |
| 8 | Motor encoder cable | R88A-CRKA005C | Omron | 9 | PCS |
| 9 | Motor control cable | XW2Z-100J-B24 | Omron | 9 | PCS |
| 10 | Motor control terminal | XW2B-50G5 | Omron | 9 | SETS |
| 11 | Green button | XB2BA31C | Schneider | 1 | PC |
| 12 | Red button | XB2BA42C | Schneider | 1 | PC |
| 13 | Emergency stop button | XB2BS542C | Schneider | 1 | PC |
| 14 | Indicator green | XB2BVM3LC | Schneider | 2 | PCS |
| 15 | Indicator red | XB2BVM4LC | Schneider | 1 | PC |
| 16 | Knob switch | XB2BD25C | Schneider | 1 | PC |
| 17 | Main power circuit breaker | IC65N-D 50A 3P | Schneider | 1 | PC |
| 18 | Motor breaker | IC65N-D 6A 2P | Schneider | 9 | PCS |
| 19 | heater circuit breaker | IC65N-D 20A 2P | Schneider | 4 | PCS |
| 20 | White pilot light | XB2BVM1LC | Schneider | 1 | PC |
| 21 | Heater for solid state relay | G3PA-220B-VD DC5-24V | OMRON | 4 | PCS |
| 22 | PLC of power supply circuit breaker | IC65N-D 6A 2P | Schneider | 1 | PC |
| 23 | Control circuit breaker | IC65N-D 10A 2P | Schneider | 1 | PC |
| 24 | Intermediate relay | MY2NJ-DC24V | Omron | 16 | PCS |
| 25 | Intermediate relay base | PYF08A-E | Omron | 16 | PCS |
| 26 | PLC- power module | NJ-PA3001 | Omron | 1 | SET |
| 27 | PLC-CPU module | NJ501-1300 | Omron | 1 | SET |
| 28 | PLC-Input module 16 | CJ1W-ID211 | Omron | 1 | SET |
| 29 | PLC-Output module 16 | CJ1W-OD211 | Omron | 1 | SET |
| 30 | PLC-Analog input module 8 loop | CJ1W-AD081-V1 | Omron | 1 | SET |
| 31 | PLC-Pulse input module | NX-EC0222 | Omron | 3 | SETS |
| 32 | PLC-Pulse output coupler | NX-ECC201 | Omron | 1 | SET |
| 33 | Optical fiber sensor & Optical fiber |
E3X-ZD11+E39 | Omron | 7 | SETS |
| 34 | Network cable | XS5W-T421-CMD-K | Omron | 10 | PCS |
| 35 | Color sensor & Optical fiber | E3X-DAC11+E39 | Omron | 1 | SET |
| 36 | 10 Inch Touch Screen | NB10W-TW01B | Omron | 1 | SET |
| 37 | Temperature control unit 4 loop | CJ1W-TC103 | Omron | 2 | SETS |
| 38 | PLC-analog output module 4 loop | CJ1W-DA041 | Omron | 2 | SETS |
| 39 | Deviation control system | Domestic | 1 | SET | |
| 40 | Tension control system | Mitsubishi powder & Domestic sensor |
Mitsubishi | 5 | SETS |
