Product Description
Product Description
Application
Paraffin forming machine is a special machinery using to continuous condensed liquid paraffin into solid paraffin with a geometry and weight in the process of paraffin refining in the petrochemical enterprises.
Paraffin forming machine is a special machinery using to continuous condensed liquid paraffin into solid paraffin with a geometry and weight in the process of paraffin refining in the petrochemical enterprises.

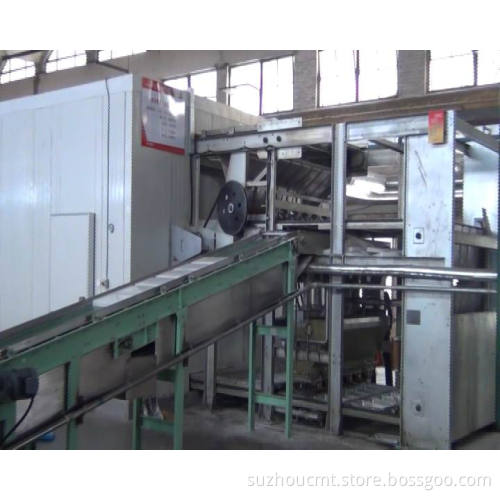

SL3QZ cylinder injection paraffin forming machine is a new model based on the combination of domestic and foreign products' characteristics,using liquid wax and heat water temperature self-control, main drive and unloading wax delivery frequency control, drive and tension hierarchical translation device, the main chain tension automatic monitoring and fault alarm, NP type rounded stainless steel wax plate group, high-precision machine dedicated chain paraffin, wax injection mechanism adjustable cylinder type, composite polyurethane cold room, biaxial Cooler, slat intermittent discharge wax, PLC control, etc, with the characterstics of large capacity, high degree of automation, effective forming and releasing, easy operation and maintenance.
Precooling institutions of heat exchanger and insulation wax liquid water cycle system
Air Cooler Evaporator
| Technical Parameter | ||
| Model | SL3QZ | |
| Note wax pattern | Adjustable cylinder | |
| Material forming | all kind of paraffin | |
| Finished wax block specification(mmm) | 480*300*50(L*W*H), 5kgs/block | |
| Wax disc group number (sets) | 380 | |
| Wax disc group rated speed (mm/min) | 1650 | |
| Rated production capacity | Hour capacity (kg/h) | 4670 |
| Yearly capacity (tons/8000h) | 37400 | |
| Main motor power (KW) | 5.5 | |
| Main chain model | LJ317 | |
| Cold room | Material | PU polyurethane color plate |
| Dimension (m) | 19*6.4*3.72 | |
| Cold fan evaporator | Structure style | double motors double fans |
| Quantity (pcs) | 4 | |
| Heat exchage area (m 2 ) | 850 | |
| Motor power (KW/pc) | 4 | |
| Intermittent discharge wax conveyor | Specification (mm) | 3000*6000 (L*W) |
| Structure style | Chain plate | |
| Power (KW) | 1.1 | |
| Discharge wax time (S) | 2.5 ~5 | |
| Max dimension (m) | 26.5*6.4*3.72(L*W*H) | |
| Weight (tons) | about 58 | |
