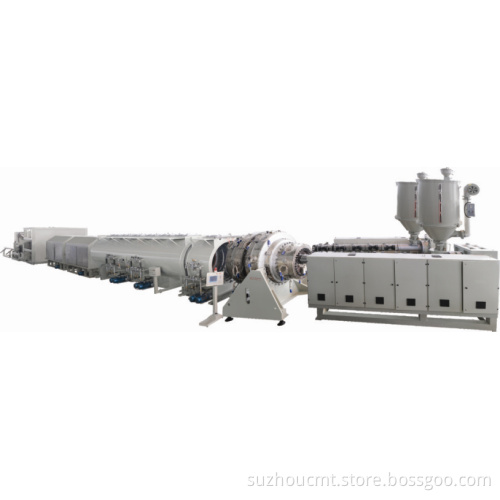

HDPE Pipe Extrusion Line

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu Suzhou
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

1. Finished pipe application

Blow off pipe, water supply pipe, etc.

2. Work condition

Low voltage power supply standard (DIN/IEC38): 380V+-10%, 50Hz+-2%, 3Phase/N/PE 50Hz (it can be adjusted according to customer's requirement )
Control voltage standard (transformed): 220V AC (contactor, instrument, solenoid valve)
Relative air humidity: max 80%, with condensation
Working temperature: 5~35ºC

3. Machine List and Specifications

Automatic feeder

Max static pressure: 9800pa
Max blast capacity: 2m3/min
Motor power: 2.2kw
Revolving speed: 2800r/min
Conveying distance: 5m
Diameter of conveying tube: 40mm
Diameter of suction tube: 40mm

Hopper typer dryer

Charge amount: 500kg
Heater: 24kw
Ventilated electric machine: 0.75kw

For more information, please contact us at any time.

No.	Name	Qty.
1.1	Automatic feeder	1set
1.2	Hopper typer dryer	1set
2.1	90/33 high speed single screw extruder	1set
2.2	25/25 extruder	1set
3	Mould	1set
4	Vacuum tank	1set
5	Cooling Tank	2set
6	Inker	1set
7	Haul-off unit	1set
8	Planetary cutter	1set
9	Stacker	1set
10	Spare Parts	1set
