Separation Machinery for Grape Seed

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu Suzhou
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

The separation machinery for grape seed consists of two parts.One is rotary dryer,the other one is seeds separator.

I. Rotary Dryer

NO.	Name	Model	Unite	Qty	Remarks
1	Cylinder	2000*20000	set	1	GB material Q235(Manganese) Steel is 18mm, including Weight lifting plate about 22.5t(The feed end of 2m using 302 stainless steel)
2	Gear wheel	Supporting	set	2	Steel Castings
3	Roller	Supporting	set	2	Steel Castings(four rollers, bearing)
4	Roller Ring	Supporting	set	2	Machined part
5	input Device(seal)	Supporting	set	1
6	output Device(seal)	Supporting	set	1
7	Large gear	Supporting	set	1	Steel Castings
8	Pinion	Supporting	set	1	Steel Casting
1	Motor	Supporting	set	1	Power: 45kw(Governor)
2	Reducer	Supporting	set	1
1	Screw Conveyor	325*8000	set	1	Power: 2.2kw
2	Screw Conveyor	325*3000	set	1	Power: 2.2kw
3	Output Belt Conveyer	500*8000	set	1	Power: 3kw
4	Induced draft fan	Supporting	set	1	Fan power: 37kw
5	Thermal conversion furnace	800,000 calories	set	1
	fan	Supporting	set	1	Power: 15kw
6	Cyclones	Supporting	set	1
7	Distribution Cabinet	Supporting	set	1
Note: Free delivery foot screws, bolts and temperature tables.

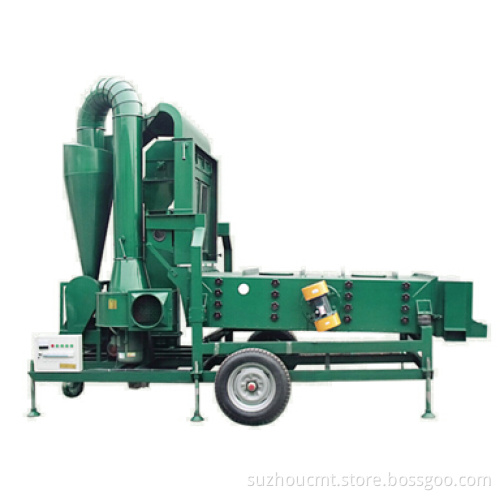

II. Seeds Separator
Main air separation function of the machine is accomplished by vertical air sieve, it according to the aerodynamic characteristics of seed, according to the different seed and impurities of the critical speed, by adjusting the air flow speed, achieve the purpose of the separation, lighter inhaledsediment concentration of impurities discharge, good seed into the vibrating screen after screen through the air.Separation principle of vibrating screen is set according to the geometry characteristics of seed, seed varieties and species is different, the size is also different, choose changing sieve in different piece, can meet the requirements of separation.

Capacity		3ton/h
Power	Total power	10.5kw
	Elevator	0.75kw
	Fan	7.5kw
	Screenor	0.75kw*2
	Deduster	0.75kw
Screen layer		4
Screen size(L*W)mm		2400*1500;
Noice		≤85dB
Feature		1, screen box amplitude: 4 mm, vibration frequency: 960 times/min.
		2, the fuselage is 2 mm high qualified steel plate bending welded together.
		3, sieve pore diameter can be customized according to customer's requirements, easy to change.
		4, suction air separation system.
		5, screen box sealing structure for the whole, the rubber ball cleaning sieve, pollution is small. Has good flexibility and convenience.
		6, equipped with spiral filter, effectively improve the working environment.

For more information, please contact us at any time.
