Paper Faced Gypsum Board Production Line
- Payment Type:
- L/C, T/T, D/P, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu Suzhou |
|---|---|
| Payment Type: | L/C, T/T, D/P, Western Union |
Product Description
Product Description
We can design the production line according to your requirements. The following data is just for your reference.
1. Scheme of product
280 m2/h ,2,000,000 m2/y(based on9.5mm-thick and 7200 working hours per year)
3.Pictures of factories
1. Scheme of product
1.1 Capacity
280 m2/h ,2,000,000 m2/y(based on9.5mm-thick and 7200 working hours per year)2. Brief Introduction of Process
2.1 Board-making Workshop
2.1.1 Dosing Section
2.1.2 Forming Section
2.1.3 Cutting and Drying Section
2.1.4 Edge Trimming and Stacking Section

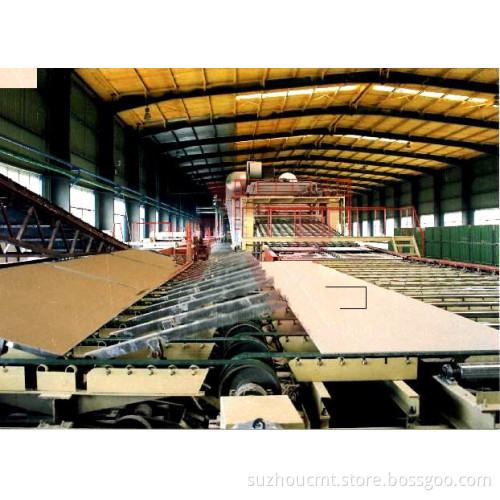

3.Pictures of factories
| Gypsum board specification | |
| Length(mm) | 2400,2440,2500,2700,3000 |
| Width(mm) | 1200,1220 |
| Thickness(mm) | 8,9,9.5,12,12.5,12.7,15,18 |
| Requirement of the raw material | ||
| Raw materials | Item | Specification |
| Calcined gypsum powder |
Fineness | 0.2mm,Remnant<10% |
| Initial set time | 3.5-5.5 minutes | |
| Final set time | 7.5-10.5 minutes | |
| Crystal water | 4.5%-5% | |
| Half-water gypsum powder | >65% | |
| Bending strength (2 hours) | 1.8 Mpa | |
| Paper | Weight | 190-220g/ Square meters |
| Thickness | 0.36-0.4mm | |
| Air permeability | 0.85-1.6μm/pas | |
| Water absorption( Cobb ) | 15-30g/square meters | |
| Tensile strength | Portrait 12.5 KN/m, transverse 3.5 KN/m | |
| Transverse expansion and contraction | <2% | |
| Moisture | 10%±2 | |
| Denaturized starch | Content of the starch | >70% |
| Moisture | 11%-13% | |
| PH | 6.5-7.5 | |
| Protein | <0.3% | |
| Solubility in 20-40 water(c) | 73%-78% | |
| Foaming agent | Condensate | >30% |
| Ligarine | <3% | |
| Inorganic salts | >2.5% | |
| PH | 7-9 | |
| Fuel consumption | ||||
| Name |
9.5mm thickness Gypsum Board Consumption |
Consumption/Hour |
Consumption/Day |
Consumption/year |
| Fuel (natural gas) |
0.4m3 | 111.111m3 | 2600m3 | 800000m3 |
