Wrought Iron Product Machine Line

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu Suzhou
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

1. Finished Product (Samples)

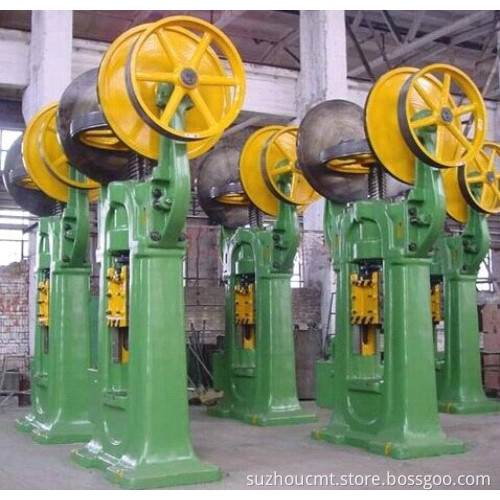

2. Machine line introduction

1.Electric Frequency-Conversion Embossing Press QTY:5

Introduction:
This aircraft may process the labor flat iron 8 tons every day. Stochastic necessary mold: Water ripple single face mold, multi-purpose side steel Moulds, flat steel and clip material mold 30× 30 and 40 ×40mm Fang Guanmu.Moreover may act according to the user request, makes to order other variety specification the mold.
The working range is broad, can process to 60×60mm tubing
Work kneading board 24 Voltage,safe reliable.

Specification:
Processing material specification:
square steel:10mm×10mm - 25mm×25mm
round steel:Φ10mm - Φ20mm:15 mm×15 mm - 50 mm×50 mm
Rectangular pipe:15mm×20mm -80mm×50mm
Cycloid pin gear speed reducer:Electric motor power: 7.5KW/380V, 50Hz

Synchronized rotation: 1500r/min
Transmission: 1:43
Outlook size(L*W*H):1700 mm×1150 mm×1260 mm
Packing size(L*W*H):1860 mm×910 mm×1480 mm
Net weight:1098KG
Gross weight:1260KG

2.New Type Tube Drawing Machine   QTY:3
Introduction:
This machine is using for drawing spiral pipe, lines, tube and flat tube in different specifications and patterns. It also can process in different diameter: Φ6mm, Φ8mm, Φ10mm, Φ12mm, Φ14mm, Φ16mm, Φ18mm, Φ20mm, Φ22mm.

Specification:
Processing capacity:
Flat Tube: 15 mm×20 mm
Pipe: Φ6mm, Φ8mm, Φ10mm, Φ12mm, Φ14mm, Φ16mm, Φ18mm, Φ20mm, Φ22mm.
Square Tube: 20 mm×20 mm, 22 mm×22 mm
Motor performance:
Power: 7.5KW
revolution: 1400 r/min
Voltage: 220/380V50HZ
Net weight:2500KG
Size:9000 mm×1200 mm×700mm

3.Hydraulic Pressure Forming Machine    QTY:3
Introduction:
1.no-pressure adjustments to ensure the effectiveness of the work machine.
2. Table size rational design cast iron industry to ensure that over 90 percent of the applicable size-bending change.
3. Manual, automatic control, safe, reliable, convenient operation.
4. Greatest intensity to 18 × 18.
5. the bending machine per hour to14 × 14 square steel 300

Specification:
Maximum operating pressure:20 ton
Maximum working trip: 300mm
The largest processing specifications of the material:Bar: Φ16 Square steel: 16×16 Flat steel: 50×10
Motor: 4KW/50Hz
Dimensions (L × W × H)(mm):1200×660×1150
Package Size (L × W × H)(mm):1360×820×1370
NW: 765KG

4.Medal Bending Flower Machine      QTY:10
Introduction:
1.The machine used electromagnetic brake high Huali Motor, frequent starter.
2: The panel voltage 24 V, safe and reliable.
3: digital control, automatic repeat, can be entered automatically batch specializing in the production process to ensure that the processing of identity.
4: feet moving operations to ensure maximum efficiency hands to work. Processing performance and maximum bending 16 × 16 square steel.
5: Mould replacement simple,convenient fixture. Chuck unique design to ensure that bends spent the beginning part of the curvature.
6: the bending machine can spend an hour 5 × 20 Flat 300.

Specification:
Maximum Processing Specification (mm):
Bar: Φ16
Flat steel: 30x10
Square steel: 16 x 16
Motor performance:power:2.2 KW ,Voltage: 220/380V 50HZ
N.W: 220KG
G.W: 230 KG

For more details, please contact us as soon as possible.
