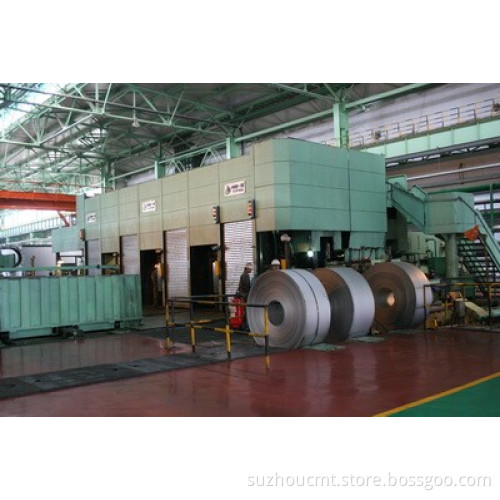

2-Hi Reversible Hot/Cold Rolling Mill Turnkey Project
- Payment Type:
- L/C, T/T, D/P, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu Suzhou |
|---|---|
| Payment Type: | L/C, T/T, D/P, Western Union |
Product Description
Product Description
We can design the production line according to your requirements. The following data is just for your reference.
1. The main facilities of rolling mill and their functions
One cold rolling mill or one hot rolling mill is mainly equipped with down press device, frame assembly, roller device, transmission device, coiling machine and electrical control system.
2. Technological Parameter
2.1 Hot Rolling
Material: Aluminum and Aluminum Alloys.
Billet Size: 75x1000 x <1000(mm), Thickness x Widht x Length
Finished block size: 6 ~ 10(mm) x 1050mm x ~ 8000 (mm) Thickness x width x length
Rolling Mode: block rolling/single sheet rolling
Maximum gap between roller: 150-200mm, minimum gap=0
Rolling Speed: 0 45 m/min
Rolling Pressure: 8000 K.N
2.2 Cold Rolling Aluminum and Aluminum Alloys
Rolling Mode: block rolling/single sheet rolling
Billet Size: 6 10x1050xL(mm)
Finished product size: 1x1050xL(mm)
Maximum gap between roller: 50mm, minimum gap=0
Rolling Speed: 0 45m/min
Rolling Pressure: 8000 K.N
3. Down Press Device
3.1 In Hot Rolling:
Down Press Motor: Capacity=30KW DC,
No. of sets: 2 sets
Mechanism=Speed indicator, automatic with fully controlled by PLC digitally and displayed digitally.
Down press screw diameter:Φ250mm, down press speed: 1 mm/sec.
3.2 In Cold Rolling:
Down Press Motor: Capacity=30KW DC,
No. of sets: 2 sets
Mechanism= Speed indicator,
automatic with fully controlled by PLC digitally and displayed digitally
Down press screw diameter: Φ250mm, down press speed: 0.05mm/sec.
4. Main Transmission
Main motor: 790KW DC,
Working voltage: 380V(rated voltage: 440V)
Type: Z560-3A
RPM: 520-1200r/min
5. Frame Assembly
Two pieces closed archway frame, frame column section: 380mm X 450mm;
Frame material: #36 cast steel
Frame column section: Artificial shovel blows(polishing)
For more information, please contact us as soon as possible.
