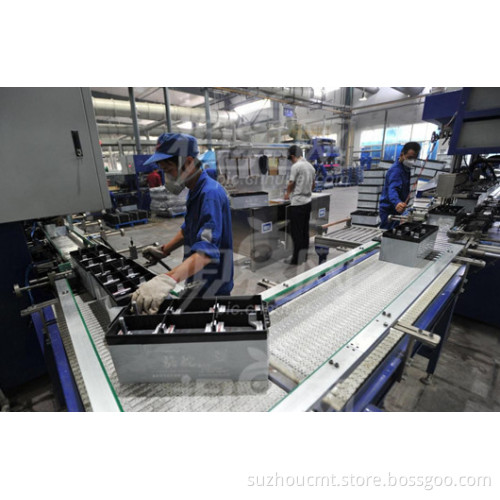

Lead Acid Battery Production Line
- Payment Type:
- L/C, T/T, D/P, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu Suzhou |
|---|---|
| Payment Type: | L/C, T/T, D/P, Western Union |
Product Description
Product Description
Equipment list
1. Plate casting machine
2.Paste mixing machine
3. Double side plate pasting machine
4. Plate surface drying machine
5. GH Curing and Drying Chamber
GH-1 curing and drying chamber is composed of main box, sub-box, controlling system.
And there are hot air circulating system, heating system, humidification System,
temperature&humidity control system and air inlet&outlet system between the main box and
sub-box.
6. Automatic plate splitting machine
7. Cast-on-strap machine
As per the current demand and production features, we developed ZHX200 Cast-on-strap
machine, it is used for casting and welding for the plate groups in battery assembling process.
The machine is fully automatic and controlled by a PLC, which has 4 working positions. The
machine needs only 2 operators, for the first position, the operator has to put the plate
groups into the clamp and tighten it, for the 2 nd position, all the movements(aligning,
flipping, lug brushing, soldering flux brushing, etc.) are automatic. For the 3 rd position
also fully automatic (aligning, casting, cooling, etc.). The other operator has to take out the
plate group from the clamp into the battery cell.
8. Partition welding machine(for welding the pole ear)
9. Battery tank cap hot sealing and welding machine
10. Screen printer
11. Acid pouring machine(10 heads)
12. Battery formation(inner formation)
13. Water bath dryer
14.Laser marking machine
1. Plate casting machine
| No. | Items | Unit | Specification | Remarks |
| 1 | Capacity | 8H | 2800 pieces | |
| 2 | Casting speed | min | 6-12 mold | |
| 3 | Casting size | mm | 330*130 | |
| 4 | Casting thickness | mm | 1.1-3.6 | |
| 5 | Cutting mold adjustable range | mm | 106-150 | |
| 6 | Lead pot temperature | ºC | 400-550 | continuously adjustable |
| 7 | Lead spoon temperature | ºC | 400-550 | continuously adjustable |
| 8 | Mold temperature | ºC | 100-200 | continuously adjustable |
| 9 | Power | KW | 44 | One machine two pots |
| 10 | Power source | AC | 3F*380V | |
| 11 | Compressed air | Mpa | 0.4-0.5 | |
| 12 | Dimension | mm | 4300*1200*2200 | |
| 13 | Weight | kg | 1500 |
3. Double side plate pasting machine
4. Plate surface drying machine
5. GH Curing and Drying Chamber
GH-1 curing and drying chamber is composed of main box, sub-box, controlling system.
And there are hot air circulating system, heating system, humidification System,
temperature&humidity control system and air inlet&outlet system between the main box and
sub-box.
6. Automatic plate splitting machine
7. Cast-on-strap machine
As per the current demand and production features, we developed ZHX200 Cast-on-strap
machine, it is used for casting and welding for the plate groups in battery assembling process.
The machine is fully automatic and controlled by a PLC, which has 4 working positions. The
machine needs only 2 operators, for the first position, the operator has to put the plate
groups into the clamp and tighten it, for the 2 nd position, all the movements(aligning,
flipping, lug brushing, soldering flux brushing, etc.) are automatic. For the 3 rd position
also fully automatic (aligning, casting, cooling, etc.). The other operator has to take out the
plate group from the clamp into the battery cell.
8. Partition welding machine(for welding the pole ear)
9. Battery tank cap hot sealing and welding machine
10. Screen printer
11. Acid pouring machine(10 heads)
12. Battery formation(inner formation)
13. Water bath dryer
14.Laser marking machine
