Product Description
Product Description

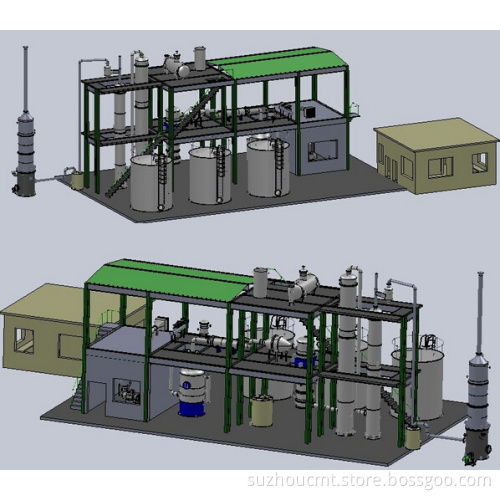

Suzhou CMT provide: set up formaldehyde plant, build formaldehyde plant and sell formaldehyde production line on turnkey basis.
(1)20000TONS Capacity Formaldehyde Non-standard equipment(proposal 1)
(2)20000TONS Capacity Formaldehyde Standard equipment(proposal 2)
(3)20000TONS Capacity Formaldehyde Electrical instrumentation(proposal 3)
(4)20000TONS Capacity Formaldehyde equipment Others(proposal 4)
For more information, please contact us at any time.
(1)20000TONS Capacity Formaldehyde Non-standard equipment(proposal 1)
| NO. | Name | Specification | Material | Remark |
| 1 | Air filter | 800×800×1500×4 | Q235-B | Containing filter body |
| 2 | Evaporator | φ1800×4200×5 | Q235B/304 | With level trough |
| 3 | 24M2 Superheater | φ600×2080×6 | Q235B/304 | Pressure vessel |
| 4 | Fire retardant filter | φ1200×2000×4 | Q235B/304 | New and efficient Containing filter body |
| 5 | New efficient oxidation (oxygenizer) | φ1600×5300×8/6/4 Effective diameterφ1200 |
Q235B/304/321 | Pressure vessel internal with Copper mesh |
| 6 | 1#Absorption tower | φ1200×11500×4 | Q235B/304 | Including distribution, structured packing and internals |
| 7 | 2. 3# Absorption tower | φ1000×11500×4 | Q235B/304 | |
| 8 | Steam pocket | φ1200×2200×10 | Q235-B | Pressure vessel |
| 9 | Steam pocket liquid level slot | φ325×1000×6 | Q235-B | Pressure vessel |
| 10 | Steam distributor | φ325×2500×6 | 20/Q235-B | Pressure vessel |
| 11 | Steam filter | φ600×1000×6 | Q235B/304 | Pressure vessel |
| 12 | Tail gas liquid sealed slot | φ800×1200×4 | Q235-B | |
| 13 | Tail gas handler | 1500×1500×16000 | 20/Q235-B | Pressure vessel |
| 14 | Air tanks | φ800×1500 | Q235-B | Pressure vessel |
| 15 | Methanol filters | φ500×600 | Q235B/304 | |
| 16 | Tower top Demister | φ600×1000 | Q235B/304 |
(2)20000TONS Capacity Formaldehyde Standard equipment(proposal 2)
| NO. | Equipment name | Specification | qty | remark(Material) |
| 1 | Roots blower | L62LD,55kW | 1 | With silencer, flexible joints |
| 2 | Methanol unloading pump | IS80-65-125 | 2 | Carbon steel, explosion-proof motor |
| 3 | Methanol feeding pump | 32W-30 | 2 | Carbon steel, explosion-proof motor |
| 4 | #1Tower Circulation pump | 100-80-125 | 2 | Stainless steel, explosion-proof motor |
| 5 | #2 Tower Circulation pump | 80-65-125 | 2 | Stainless steel, explosion-proof motor |
| 6 | #3 Tower Circulation pump | 65-50-125 | 1 | Stainless steel, explosion-proof motor |
| 7 | Circulating pump | 150-125-250 | 2 | Carbon steel |
| 8 | Formaldehyde finished product pump | 65-50-125 | 2 | Stainless steel, explosion-proof motor |
| 9 | Soft water pump | 50-32-125 | 2 | Carbon steel, explosion-proof motor |
| 10 | Multi-stage pump | 1 1/2GC-5×3 | 2 | Carbon steel, explosion-proof motor,used in steam-pocket |
| 11 | Heat water pumps | 180-65-125 | 2 | Carbon steel, explosion-proof motor |
| 12 | #1Tower Heat exchanger | 100m2 | 1 | Stainless steel |
| 13 | #2 Tower Heat exchanger | 60m2 | 1 | Stainless steel |
| 14 | #3 Tower Heat exchanger | 20m2 | 1 | Stainless steel |
| 15 | Cooling towers | 200 m3/h | 1 | Circulating water cooling without a fan |
| 16 | Tail gas handling device fan | 4-72 | 1 | Exhaust processor Blower |
| 17 | Chain hoists | 2TONS | 2 | |
| 18 | Soft water processor | 8TONS/Hour | 1 |
(3)20000TONS Capacity Formaldehyde Electrical instrumentation(proposal 3)
| NO. | Equipment name | Specification | qty | Remark |
| 1 | Automation DCS equipment | 1 | Zhejiang University ZhongKong Product 2 Displays |
|
| 2 | Electrical cabinets | 3 | ||
| 3 | Instrument regulating valve | 6 | 1,A tower level; 2,Steam pocket liquid level; 3,Evaporator liquid level; 4.Evaporator temperature(Control the amount of hot water); 5,Ingredients steam; 6,A tower level; |
|
| 4 | Transmitter | 7 | ||
| 5 | Orifice plate | 2 | air flow ingredients steam flow |
|
| 6 | Inverter | 55KW | 1 | |
| 7 | Wires, cables and bridge, and other accessories | 1 | 1,Power cable go in cable trench 2,Formaldehyde device isbl 30 meters |
|
| 8 | Field site Instruments | 1 | ||
| 9 | Electrical Instruments installation costs | 1 |
(4)20000TONS Capacity Formaldehyde equipment Others(proposal 4)
| NO. | Equipment name | Specification | qty | Remark |
| 1 | Pipes | 1 | 20 # seamless steel pipe and stainless steel pipe, Formaldehyde Plant Building ISBL | |
| 2 | Valves, flanges, bolts, etc. | 1 | Formaldehyde Plant Building ISBL | |
| 3 | Installation accessories | 1 | ||
| 4 | Installation fee | 1 | ||
| 6 | Paint | 1 | From Buyer | |
| 7 | Design fees, technical services fees | 1 | ||
| 8 | Pressure vessel province of pot seized examination fee | 1 | ||
| 9 | Inspection fee | 1 | 0.3‰ of total amount |
For more information, please contact us at any time.
