Automated Filter Tester for Lab Equipment
- Payment Type:
- L/C, T/T, D/P, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Place of Origin: | Jiangsu Suzhou |
---|---|
Payment Type: | L/C, T/T, D/P, Western Union |
Product Description
Product Description
Application:

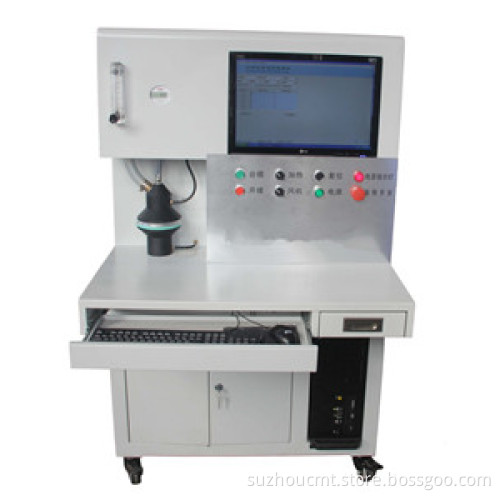

Automated Filter Tester is designed for a stand- alone tester to check a few filters per day or need to integrate your tester in an automated, high-volume production line. It has proven track records of durability, reliability, and minimal maintenance, meeting the demanding requirements of manufacturing and quality control environments in the past ten years. It equipped with two sets specially designed aerosol generators enable highly repeatable and reproducible filter-efficiency measurements. It features a high degree of automation and self-diagnostics that greatly simplifies operation, increases throughput, and improves overall measurement performance. As a result, DW9010 filter testers are ideally suited for QC testing. It complies with many standards, such as US 42 CFR 84, EN 143, GB2626-200; JMOL (Japanese respirator standard) etc.
Features:
Compliance with more regulations and well received by many customer
Simple, fast and automated operation
Highly consistent test results
Designed for manufacturing environments
Support Chinese and English, menu type operating mode and large LCD displayer, it's easy to switch;
Computer control with special software
Automated Filter Tester is designed for a stand- alone tester to check a few filters per day or need to integrate your tester in an automated, high-volume production line. It has proven track records of durability, reliability, and minimal maintenance, meeting the demanding requirements of manufacturing and quality control environments in the past ten years. It equipped with two sets specially designed aerosol generators enable highly repeatable and reproducible filter-efficiency measurements. It features a high degree of automation and self-diagnostics that greatly simplifies operation, increases throughput, and improves overall measurement performance. As a result, DW9010 filter testers are ideally suited for QC testing. It complies with many standards, such as US 42 CFR 84, EN 143, GB2626-200; JMOL (Japanese respirator standard) etc.
Features:
Compliance with more regulations and well received by many customer
Simple, fast and automated operation
Highly consistent test results
Designed for manufacturing environments
Support Chinese and English, menu type operating mode and large LCD displayer, it's easy to switch;
Computer control with special software
Technical Specification | |
Model | 010 |
Aerosol | Salt,DOP,DEHS , Paroline, Corn oil etc |
Aerosol density | (50~200) mg/m 3 (oil), (12~20)mg/m 3 (salt) |
Measuring range | (0~100) L/min |
Power supply | 220V, 50/60Hz |
Compressor requirement | 198 L/min at 550 kpa |
Dimension | 900mm × 880mm × 1510mm |
Weight | 95Kg |
