Product Description
Product Description
Application:

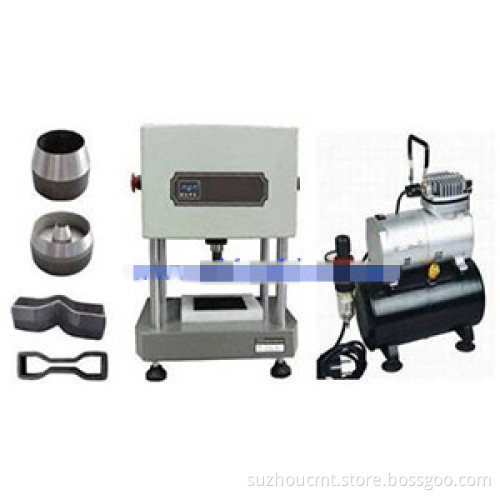

HY3140B Pneumatic Sample Cutter is used to cut sample rubber, plastic, leather and other material of various shapes by using different knife dies. The samples can be used for tensile test, mooney viscosity test and other various tests.
Features:
Pneumatic operation
Fast to cut sample, easy and simple to operate
Different die can be selected
Widely used
Equipped with durable cutting pad and die
HY3140B Pneumatic Sample Cutter is used to cut sample rubber, plastic, leather and other material of various shapes by using different knife dies. The samples can be used for tensile test, mooney viscosity test and other various tests.
Features:
Pneumatic operation
Fast to cut sample, easy and simple to operate
Different die can be selected
Widely used
Equipped with durable cutting pad and die
| Technical Specification | |
| Model | HY3140B |
| Travel | 50mm |
| Pressure | The cutting pressure is 7kN when the air pressure is 0.6MPa |
| Input air pressure | ≥0.5MPa |
| Dimension | 340mm×220mm×500mm |
| Weight | 25kg |
