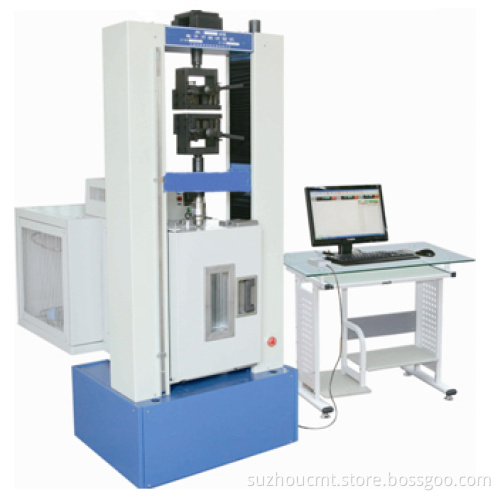

SGS Cmt Universal Testing Machine

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Jiangsu Suzhou
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

Application: It is suitable for tensile, compression, bending, shearing, peeling, tearing and other mechanics performance tests of plastics, rubber, textile, geosynthetics, non-metallic and composite materials.

Features:

HY4200A with high temperature chamber, HY4200B with high & low temperature chamber

Computer control, modular program design

Test result with automatic storage

Technical Specification
Model	HY4200A	HY4200B
Max. force	10kN, 20kN, 30kN, 50kN 100kN, 200kN	10kN, 20kN, 30kN, 50kN 100kN, 200kN
Force error	≤±1.0%	≤±1.0%
Force resolution	1/50000 of max. force	1/50000 of max. force
Temperature range	RT~100±2	-40~100±2
Temperature fluctuation	≤±1.5	≤±1.5
Test width	410mm	410mm
Tensile travel	550mm	550mm
Test speed	1~100mm/min	1~100mm/min
Power supply	AC380V, 50Hz, 1.5kw	AC380V, 50Hz, 1.5kw
Dimensions	600×750×1700mm	600×750×1700mm
Weight	400kg	400kg
