Themic Oil Boiler, Thermal Oil Heater
- Payment Type:
- L/C, T/T, D/P, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Jiangsu Suzhou |
|---|---|
| Payment Type: | L/C, T/T, D/P, Western Union |
Product Description
Product Description

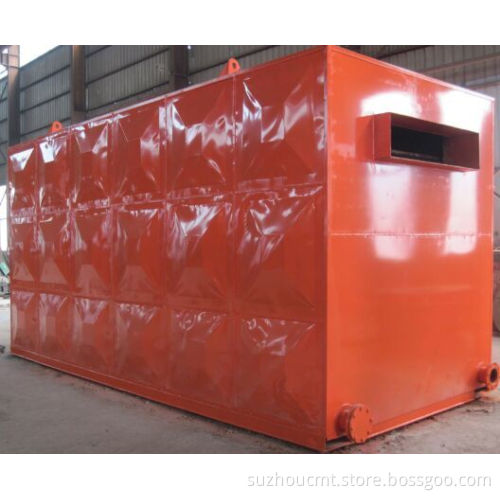

This kind of boiler is packaging-style forced circulation chain grate boiler.
1. The front part of boiler proper is the chamber radiation heating surface, which is formed by the compact double square coiled tubes; the back part is erosion convection heating surface formed by serpentine tube bundle.
2. This boiler is composed by upper body and lower chain furnace and we can combine them together on site.
3. Access to low pressure high temperature thermal medium, convenient adjustment, heat evenly, to meet precise process temperature.
4. Liquid circulation heat, no condensation heat loss emissions, high thermal efficiency heating system
5. The working medium heat and heat and temperature fluctuation on the volume change in the compensation measures within the system.
6. Circulating heat medium before the strict control of air, water and other low volatile content of the technical measures
The Catalogue and Main Technical Parameter
For more information,please contact us at any time.
1. The front part of boiler proper is the chamber radiation heating surface, which is formed by the compact double square coiled tubes; the back part is erosion convection heating surface formed by serpentine tube bundle.
2. This boiler is composed by upper body and lower chain furnace and we can combine them together on site.
3. Access to low pressure high temperature thermal medium, convenient adjustment, heat evenly, to meet precise process temperature.
4. Liquid circulation heat, no condensation heat loss emissions, high thermal efficiency heating system
5. The working medium heat and heat and temperature fluctuation on the volume change in the compensation measures within the system.
6. Circulating heat medium before the strict control of air, water and other low volatile content of the technical measures
The Catalogue and Main Technical Parameter
| Rated thermal power(kw) |
120 | 230 | 350 | 500 | 700 | 930 | 1200 | 1400 | |
| Thermal efficiency(%) | 65 | 70 | 73 | 73 | 73 | 73 | 73 | 73 | |
| Rated steam pressure(Mpa) |
0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |
| Maximum working temperature(ºC) |
320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
| Capacity(m³) | 0.07 | 0.22 | 0.28 | 0.38 | 0.55 | 0.75 | 0.86 | 0.95 | |
| Circulating oil(m³/h) | 12.5 | 20 | 40 | 60 | 80 | 100 | 100 | 100 | |
| Piping connection diameter(DN) |
50 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | |
| System installed capacity(kw) |
8 | 10 | 18 | 22 | 25 | 35 | 35 | 35 | |
| Size | Diameter | 1215 | 1500 | 1650 | 1700 | 2030 | 2160 | 2160 | 2200 |
| Height | 2310 | 2750 | 2850 | 3300 | 3450 | 3850 | 4250 | 5100 | |
| weight(kg) | 2500 | 3200 | 4800 | 5300 | 5800 | 6200 | 6700 | 7300 | |
For more information,please contact us at any time.
