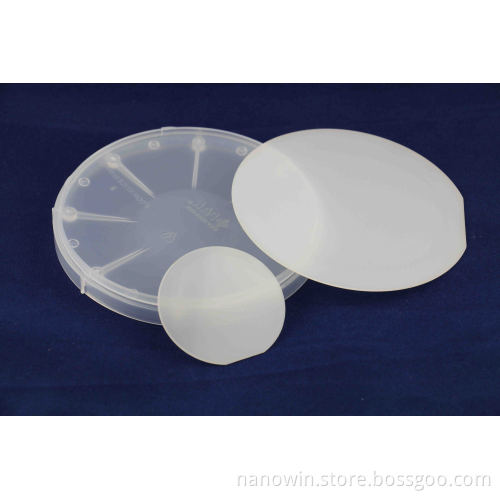

4" Gan Templates

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Zhengzhou, Henan, China
Payment Type:	T/T

Product Description

LED(Light-Emitting diode)has series of advantages such as high illumination efficiency, full color, energy conservation, long service life, quick response speed, small size, solid light source, cold light source(without heat),friendly to environment, easily motivated, etc; which can be widely used in display of various signals and graphics. Recently, quantities of breakthrough and progress of LED have been achieved on GaN-based materials, i.e. high efficiency blue and white LED has been made out not only to realize large-screen full color display, but also to replace the incandescent lamp and fluorescent lamp, thus can totally change our lives.LED applications: All color FPD: LCD backlight, LED monitor.

Specifications:

Item GaN-T-N-4inch

Dimensions 4"

Thickness 4 µm, 10~30 µm

Orientation C-axis(0001) ± 1°

Conduction Type N-type

Resistivity(300K) < 0.05 Ωcm

Dislocation Density Less than 1x108 cm-2

Substrate structure Thick GaN on Sapphire(0001)

Useable Surface Area > 90%

Polishing Standard: SSP

Option: DSP
