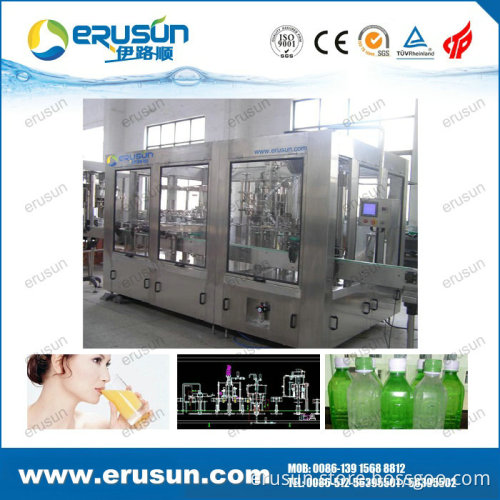

Juice with Fruit Meat Filling Machine

Summary
ERUSUN Pulp juice 4-in-1 filling machine is a set of rinsing, pulp filling, juice filling and capping in one of the moderate (high) temperature filling machine, pulp, juice separately filling solve the problem of uneven content.
Host fully enclosed sealed windows, filling part 100 clean to ensure that the environment in the filling area to reach the desired temperature and filling requirements.
Bottle conveying adopts NECK HOLD, to reduce the adjustment and operation to the machine when changing bottle shape under the circumstance of keep the bottle mouth.
Host using reducer and coupling interaction transfer power to ensure the smooth operation.

Technical Parameters
Model: RHFC16/8/12/6P
Rinsing Head: 16
Pulp filling head: 8
Juice Filling Head: 12
Capping Head: 6
Production capacity (500ml) (B/H): 3000BPH
PET bottle size (mm): Bottle diameter φ50-φ100mm; Height 150-300mm
Rinsing water pressure (Mpa): 0.2-0.25
Rinsing water consumption (ton/h): 1t/hour
Air pressure (Mpa): 0.7
Air consumption (m3/min): 0.25m3/min
Motor power (KW): 3.5
Weight (KG): 5500
Packing Size (L*W*H) (mm): 3700*2300*2600
