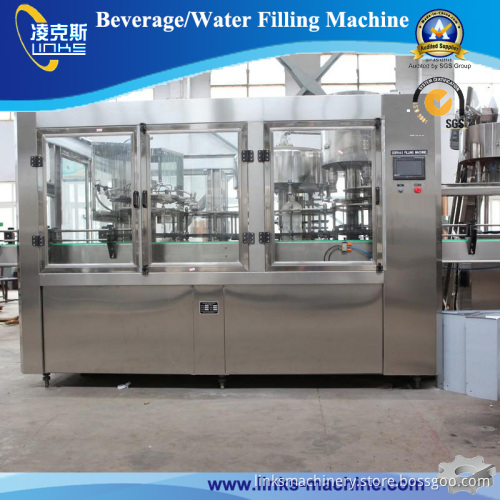

800bph 5L Water Bottling Filling Machine

XGF Series big bottle rinsing filling capping 3 in 1 machine
800BPH 5L Water Bottling Filling Machine
With High efficiency, easy maintenance

I)The main purpose and characteristics
 The filling machine is suitable for 3-10L pure water, mineral water and other non-automatic liquid filling gas, its main features are:
 1 bottle red card is the bottleneck parts of method used, rotate 180 degrees, washing efficiency.
 2, the use of fixed surface of the filling means filling quality, filling speed quickly.
 3, the use of mechanical liquid level automatic control mechanism.
 4, filling valve, hydraulic cylinder and other parts of surface are in direct contact with high-quality stainless steel, corrosion-resistant, easy to clean, in line with industrial hygiene requirements.
 5, the use of electromagnetic speed control motor, strong production capacity to achieve any adjustments.
 6, compact structure, convenient operation and easy maintenance.
II)Working principle:
 The machine adopts the principle is given liquid filling pressure filling.
Main process is: cleaned the bottle into the bottle track wheel appropriated by the lift shaft parts,
with the dial clockwise, the bottle filling valve from the bottom up and seal the bottle and realized the
bottle sealed contact with the valve open Liquid cylinder of liquid in the downstream effects of its weight into the bottle,
while the air inside the bottle of liquid in the shed, driven out from the center tube discharge valve,
the liquid until the bottle vent pipe flooded the center, the irrigation Installed to stop, with the bottle down, filling valve closed,
filling the bottle by the end of the bottle sealed track wheel output into the next process.
III)Main technical parameters:
             Rinse heads: 8
             Filling heads: 8
             Capping heads: 3
             Rated capacity: 800~1000 bottles / hour (base on 1 gallon bottle)
             Filling capacity: 3.78L-10L(standard filling volume)
             Filling materials: water
             Bottle type: PET bottle, bottle diameter  100-220MM, bottle height 150-350MM (special requirements can be customized)
             Filling method: filling pressure
             Applicable cap type: standard plastic screw cap
             Power: 2.2KW
             Voltage: 220V three-phase AC/Can b designed
             Rinse water consumption: (sterile water) ≈ 0.5-0.8M3 / H
             Pressure: 0.4MPA
             Equipment Dimensions: L2780 * W1965 * H2100MM
             Equipment weight: 4000KG
IV):Device configuration:
             Part of the composition :---- rinsing equipment
                       Filling parts ----
                       ---- sealing part of the
                       ---- pneumatic parts
                       ---- Electrical Part
                       ---- part of the electrical box
                       ---- part of the main drive
                       ---- chain box and some out of Arc
                           Bottle chain conveyor into the length of 1 m
                           Bottle chain conveyor that the length of 1 m


General description

1, The rotary wheel is a fully SUS304 stainless steel welded structure.

2, Use PLC control system from Japan, and with Taiwan Veinview touch screen, much easier to adjust the speed and turn/off. The whole machine technology from Germany and Italy.

3, The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

4, Transfer Starwheel
Made of stainless steel of superior quality.
