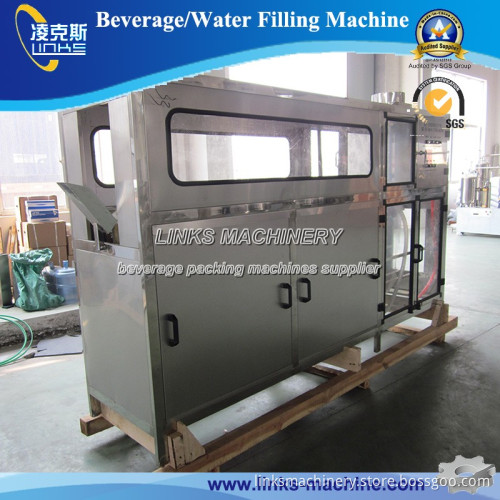

100bph 3-5gallon Water Bottle Filling Machine

Name: 5 Gallon Bottle Filling Machine
With High efficiency, easy maintenance

1/ Can be suitable for bottles size from 3gallon to 5gallon
When you want to change the different bottles, it is simple to change the exchange parts on the machine.

2/ Easy operation and maintaince, we will send our engineers to your factory, to install the machines and train your workers, according the machines capacity, the time from 15 to 30days.

4/ We can provide the whole complete line, from preform/caps injection molding machine, bottle blowing machine, water treatment, complete filling packing line, material PET and PE grains, labels...With all necessary machines and material we will provide for you. (Turn-key project) Customer only request to provide the factory, electricity, water resource)

Machines Paremeters:
(1). Filling Heads: 1 Heads
(2). Filling Volume 3-5 Gallon
(3). Size of Barrel ¢ 276X370mm, ¢ 276X490mm
(4). Production Capacity 100barrels/hour
(5). Power: Be designed, Total power: 6.5Kw.
(6). Volume of using water
(7). Air resources Pressure: 0.45-0.6Mpa, air usage volume: 60L/M
(11). Overall dimension Long 2360X wide 560 X high 1500mm
(12). Total weight About 0.9Tons
