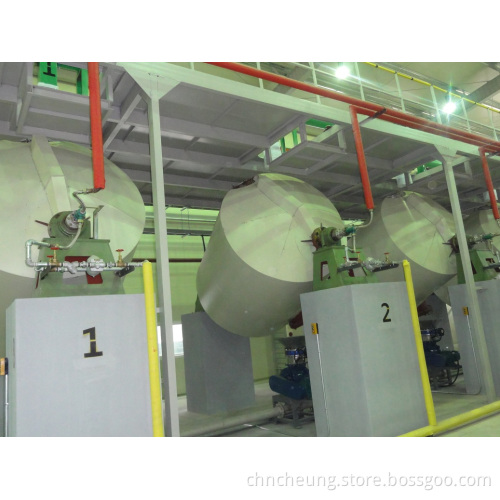

The PSF plant takes virgin PET Chips, recycled Bottle Flakes, Popcorn and Lumps, etc., as raw material, with continuous drying (or batch drying through Vacuum Dryer), high pressure melt spinning process engineering and VFD controlled Spinning & Stretching process engineering to produce normal Staple Fibre, High Tenacity Low Elongation Staple Fibre and Hollow Fibre. Single plant capacity is 15T. P. D. to 80T. P. D.
A typical PSF Equipment Process Flow as following:
Spinning Line
Continuous Dryer (Batch Dryer) - (Hopper) - Screw Extruder - Filter - Spin Beam (Meter Pump and its Driving System, Spin Pack, Spinneret) - Quenching Unit - Inter floor Duct - Draw-off Wall - Capstan Roller - Sunflower Wheel Gearing unit - Fibre Can Traverse System
Draw Line
Can Creel - Inlet Thread Guide - Tow Guide Stand - Dipping Bath - 1st Draw Stand - Draw Bath - 2ND Draw Stand - Draw Steam Chest - Annealer - Spin Finish Spray Cooling Box - 3rd Draw Stand - Tow Stacker - Crimper Steam Box - Crimper - (Tow Tension Stand) - (Cutter) - Tow Conveyer- Relaxer - Tow Tension Stand - Cutter - Tow Conveyor - Baling Press
Sketch of the Equipment flow
No matter which kind PSF product is produced, the spinning process flow is as shown below:
However, the stretching process flow is variable as per different fibre characteristics:
Draw Line for Solid Fibre
Draw Line for Three Dimensional Hollow Fibre
Equipment Technical Data
