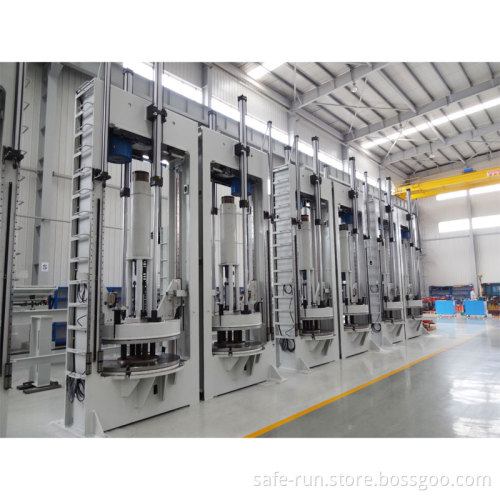

Tyre Shaping and Curing Press

Technical Parameters:


1. Sizes: 51"(15"~22")
2. Thickness of mold: Min250mm~max550mm
3. Mold clamping capacity: Max220t
4. Cavity: Two cavities
5. Type: Frame
6. Dia. And length of tire: Φ 900mm &max400mm
7. Type of bladder: Open up/down
8. Curing media: Steam, nitrogen
9. Mold heating: Heating pad, heating jacket
10. Green tire storage: 1-position grabbing/ 3-position rotating
11. Position control device: Linearity sensor and encoder
- Manipulator, tire remover, center mechanism, open/close mold
12. Adjustment of mold height automatically
13. Suitable molds: Two piece mold, segmented mold
14. Hydraulic drive station:
1)one main drive five split type
With high pressure 24MPa(1running1standby),
Medium pressure 10MPa (3running 0standby)
2) one drive one typeWith high pressure 24MPa (1 running 1 standby) 15. Cycle time(net): 90 seconds
16. Curing system (optional)
(1) Steam(high temperature): 17kgf/cm2
(2) Nitrogen(internal pressure): 25kgf/cm2
(3) Steam for heating pad/heating jacket: 10kgf/cm2
17. Application
Power supply: 380V(50Hz)3P, DC24V
