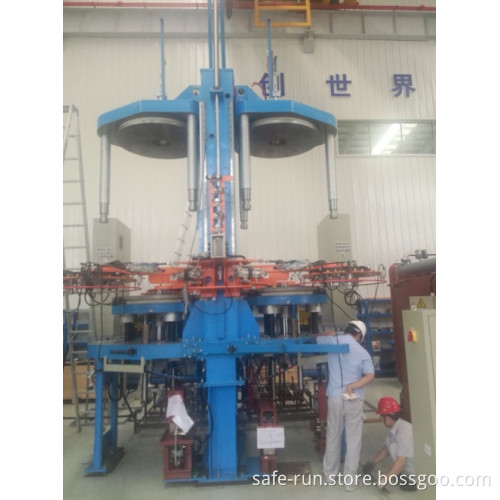

Curing Presses

Technical Parameters:




1. Sizes: 51"(15"~22")
2. Thickness of mold: Min250mm~max550mm
3. Mold clamping capacity: Max185t
4. Cavity: Two cavities
5. Type: Balance
6. Maximum Diameter of finished tire: Φ 840mm
Maximum height of green tire: 540mm
Effective Diameter of heating pad: 1250mm
7. Central Mechanism: Open up/down
8. Curing media: Steam, nitrogen
9. Mold open/ close: Hydraulic drive
10. Mold heating: Heating pad, heating jacket
11. Green tire storage: 1-position grabbing
12. Position control device: Displacement sensor and encoder
13. Adjustment of mold height: Automatically
14. Suitable molds: Two piece mold, segmented mold
15. Hydraulic drive station:
1) one main drive five split type
2) one drive one type
16. Cycle time: 90-100 seconds
17. Curing system (optional)
(1) Steam(high temperature): 17kgf/cm2
(2) Nitrogen(internal pressure): 28kgf/cm2
(3) Steam for heating pad/heating jacket: 10kgf/cm2
18. Application
Power supply: 380V (50Hz) 3P, DC24V


Brief Introduction
1. Accurately machined parts give the machine good function and accuracy, as well as the guarantee for the quality of cured tire.
2. The whole process is controlled by PLC (Programmable Logic Controller). The touch screen, human-machine interface, displays production procedure and provides processing parameter setting, sizes saving, fault diagnosing, and a convenient access to parameters and/or size changing, which is easy for you to operate.
3. The dimension of manipulator chuck is set by travel controllable cylinder or manual.
4. Manipulator, mold opening/closing, central mechanism's traveling up and down are controlled by displacement sensor.
5. The width of 4-position shaping inflation rim is adjusted by reduction gear automatically.
6. The production process and quality control meet ISO9001 standard.
