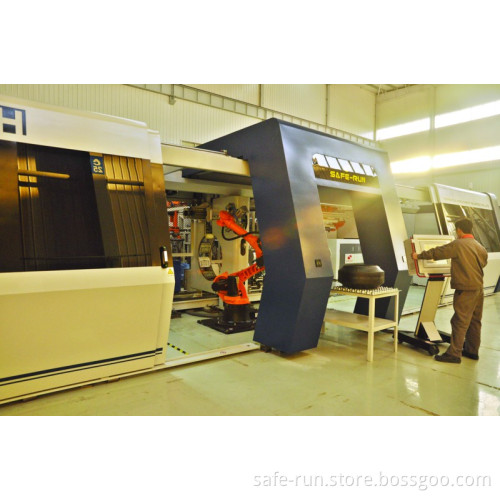

SRS - H Single Stage Intelligent Tire Building Machine
- Payment Type:
- L/C, T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou Jiangsu |
|---|---|
| Payment Type: | L/C, T/T |
Product Description
Product Description
SRS - H Single Stage Intelligent Tire Building Machine
Technical parameters
1. Capacity: 600pcs/shift, single cycle time: 42 seconds/tire
2. Power: 380V±10% 50Hz±2 3 phase
3. Machine dimension: 12500*15000*3200
4. Bead diameter: 14″-20″
5. Height of main shaft: 950
6. Range of beat setting: 220-640
7. Green tire diameter: 490-900
Technical characteristics
1. The bead load automatically is a significant symbol of full-automatic unmanned operation. This makes the whole shaping operation out of manual-labor.
2. The quality of belt joint is monitored by visual system. It is important quality assurance for full-automatic unmanned operation.
3. Realization of the Stitching Station reflects high flexibility and efficiency of the equipment.
4. Belt, tread, cap ply servicer stand still, while plying-up is realized by moving the belt drum in all directions. The design shortens one third of the cycle time.
5. The production process and quality control meet ISO9001 standard.
Our Service:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
Technical parameters
1. Capacity: 600pcs/shift, single cycle time: 42 seconds/tire
2. Power: 380V±10% 50Hz±2 3 phase
3. Machine dimension: 12500*15000*3200
4. Bead diameter: 14″-20″
5. Height of main shaft: 950
6. Range of beat setting: 220-640
7. Green tire diameter: 490-900
Technical characteristics
1. The bead load automatically is a significant symbol of full-automatic unmanned operation. This makes the whole shaping operation out of manual-labor.
2. The quality of belt joint is monitored by visual system. It is important quality assurance for full-automatic unmanned operation.
3. Realization of the Stitching Station reflects high flexibility and efficiency of the equipment.
4. Belt, tread, cap ply servicer stand still, while plying-up is realized by moving the belt drum in all directions. The design shortens one third of the cycle time.
5. The production process and quality control meet ISO9001 standard.
Our Service:
1. One year warranty and lifetime technical support.
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
