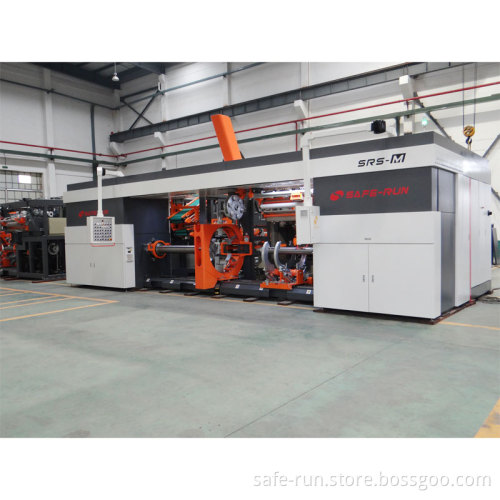

PCR Tyre Forming Machine

1. Technical Parameters 14"-18"(13"-16", 16"-20", 20"-24")
2. Diameter of green tire min: Φ 475 max: Φ 800
3. Diameter of steel belt min: Φ 460 max: Φ 660
4. Diameter of carcass drum min: Φ 337 max: Φ 444
5. Carcass ply (adjustable according to the user)
- Width of inner-liner min: 280 max: 800
- Width of sidewall max: 260
- Sidewall/inner-liner composite min: 340 max: 1100
- Width of carcass ply min: 300 max: 800
6. Steel belt/tread (adjustable according to the user)
- Width of steel belt min: 80 max: 360
- Length of steel belt min: 1650 max: 2800
- Width of tread min: 200 max: 370
- Length of tread min: 1700 max: 2800
- Width of cap ply max: 380
7. Diameter of material rolls on the handcart
- Inner-liner, ply, sidewall, steel belt max: Φ 1000
- Tread max: Φ 1500
8. Device features
(1)Height of main shaft 950mm
(2)Drive of main shaft servo motor(200rpm)
(3)Unwound semi-product supply
- Inner-liner handcart
- 1st/2nd ply handcart
-Sidewall handcart
- Cap ply wooden shaft
(4)Semi-product length setting servo motor
(5)Semi-product centering CCD auto control
(6)Semi-product cutting auto cutting with heated knife and ultrasonic knife
(7)Semi-product splicing automatically
(8)Turn up/turn down bladder + bladder pushing ring
(9)Steel belt drum with double stations (steel belt + tread)
(10) Stitching combination stitching (TOS + SOT)
(11) Positioning servo motor + linearly displacement sensing
(12) Splicing roller multi-disk stitching roller
