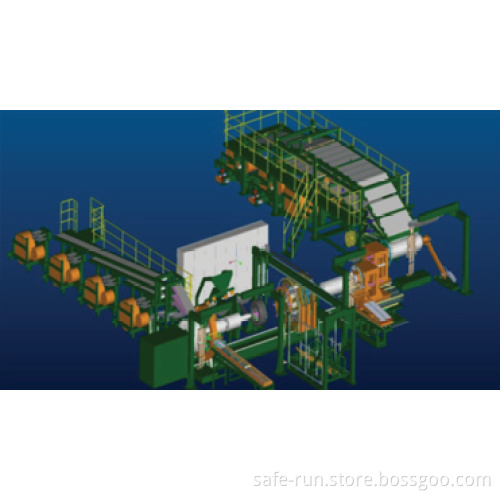

Single- Stage All Steel Radial Truck Tyre Building Machine (Four DRUMS)
- Payment Type:
- L/C, T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Suzhou Jiangsu |
|---|---|
| Payment Type: | L/C, T/T, Western Union |
Product Description
Product Description
Technical Parameters Tire sizes17.5~24.5" all sizes
Overall diameter of green tire min: φ 750 max: φ 1220
Diameter of belt drum min: φ 720 max: φ 1120
Setting range of the drum straight width min: 240 max: 870
Carcass
- Width of inner-linner min: 450 max: 1100
- Width of sidewall/bead reinforcement min: 160 max: 420
- Sidewall/inner-liner composite min: 740 max: 1500
- Width of bead ply min: 70 max: 200
- Width of carcass ply min: 450 max: 1000
- Width of shoulder pad min: 40 max: 200
Steel belt/tread
- Width of 1# belt ply min: 100 max: 260
- Width of #2 belt ply min: 130 max: 290
- Width of #3 belt ply min: 110 max: 280
- Width of #4 belt ply min: 70 max: 260
- Width of 0° Belt ply min: 25 max: 60
- Width of tread min: 180 max: 560
- Length of tread min: 2470 max: 3650
Brief Introduction
1. Servo drive is adopted for precise position of the main shaft. Linear displacement transducer is used to sense the drum's width. Servo + rack and pinion drive the transfer ring and clamping ring on the chasis. Linear displacement sensor is used to detect the location and the mechanical positioning with accurate repeatability and ensure the safety for both man and machine.
2. Main servicer and belt servicer adopt servo system and CCD auto rectifying system to realize the auto length setting, auto cutting, auto centering and auto splicing, so that the process circle time for the single tire has been minimized to 60 seconds (size 16" single carcass).
3. The cap ply winding adopts the Tension Control System which developed by our company ( applied for the national patent), the system ensures the tension of cap ply at 700± 200g and segmentation tension control is available.
4. The whole process is controlled by PLC(Programmable Logic Controller). The touch screen, human-machine interface, displays production procedure and provides processing parameter setting, sizes saving, fault diagnosing, and a convenient access to parameters and/or size changing, which is easy for you to operate.
5. Accurately machined parts give the machine good function and accuracy, as well as the guarantee of the green tire quality.
6. The production process and quality control meet ISO9001 standard.
Overall diameter of green tire min: φ 750 max: φ 1220
Diameter of belt drum min: φ 720 max: φ 1120
Setting range of the drum straight width min: 240 max: 870
Carcass
- Width of inner-linner min: 450 max: 1100
- Width of sidewall/bead reinforcement min: 160 max: 420
- Sidewall/inner-liner composite min: 740 max: 1500
- Width of bead ply min: 70 max: 200
- Width of carcass ply min: 450 max: 1000
- Width of shoulder pad min: 40 max: 200
Steel belt/tread
- Width of 1# belt ply min: 100 max: 260
- Width of #2 belt ply min: 130 max: 290
- Width of #3 belt ply min: 110 max: 280
- Width of #4 belt ply min: 70 max: 260
- Width of 0° Belt ply min: 25 max: 60
- Width of tread min: 180 max: 560
- Length of tread min: 2470 max: 3650
Brief Introduction
1. Servo drive is adopted for precise position of the main shaft. Linear displacement transducer is used to sense the drum's width. Servo + rack and pinion drive the transfer ring and clamping ring on the chasis. Linear displacement sensor is used to detect the location and the mechanical positioning with accurate repeatability and ensure the safety for both man and machine.
2. Main servicer and belt servicer adopt servo system and CCD auto rectifying system to realize the auto length setting, auto cutting, auto centering and auto splicing, so that the process circle time for the single tire has been minimized to 60 seconds (size 16" single carcass).
3. The cap ply winding adopts the Tension Control System which developed by our company ( applied for the national patent), the system ensures the tension of cap ply at 700± 200g and segmentation tension control is available.
4. The whole process is controlled by PLC(Programmable Logic Controller). The touch screen, human-machine interface, displays production procedure and provides processing parameter setting, sizes saving, fault diagnosing, and a convenient access to parameters and/or size changing, which is easy for you to operate.
5. Accurately machined parts give the machine good function and accuracy, as well as the guarantee of the green tire quality.
6. The production process and quality control meet ISO9001 standard.
