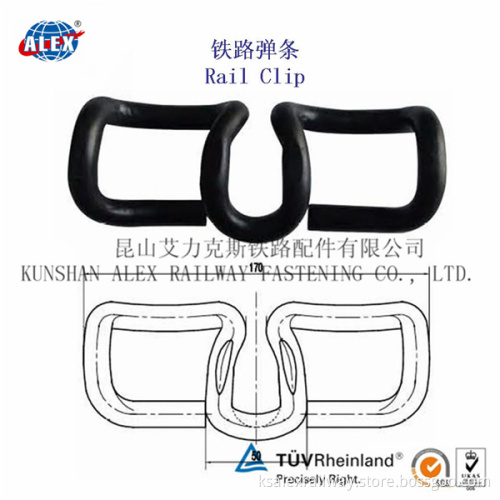

Railroad clip SKL12
Elastic railroad clip SKL12 is for rail fastening system. We produce and supply various elastic rail clip, spring blade and SKL tension clamp.
Technical Parameter of The Railroad Clip SKL12
|
Diameter |
Type |
Weight (Kg) |
|
13mm |
SKL1 |
0.49 |
|
13mm |
SKL3 |
0.53 |
|
13mm |
SKL12 |
0.53 |
|
13mm |
SKL14 |
0.505 |
Surface: Plain Oiled, Oxygen Black, Zinc Plated, Hot Dip Galvanized, Dacromet coating
Fatigue Property: When spring deflection is 9.1mm, fatigue life is up to 5 million cycles without breaking.
Hardness: 42-47 HRC.
Material Reference: DIN 17221, BS970, GB/T 4357, GB/T 4358.
Flamping force 25KN, Fatigue life 3 millions to 5 million
Surface: Plain with anti-rust oil, Bluing (Black Oxide), Painting, Zinc Plating, HDG or as per requirement.
MOQ: 5000pcs
Packaging: Less 25KG per woven bag. Fumigation free Pallet. Clients can appoint the way.
We are a leading elastic railway clip manufacturer in China. We can also make other rail fastenings such as railway screw, plastic dowel, rail pad, railway insulator, rail fish bolt, railway base plate, rail anchor, railway shoulder, rail bolt, flat and spring washer, fastening system of E type/SKL type/KP type/ Nabla type. Welcom to choose the railway Clip E2055 from Kunshan ALEX Railway Fastening Co., Ltd.
