Basic Info

Place of Origin:	Suzhou
Productivity:	30,000 pcs/day
Supply Ability:	3,000 Tons / Month
Payment Type:	T/T,Western Union
Incoterm:	FOB
Certificate:	ISO9001-2008
Transportation:	Ocean,Land,Air

Product Description

E2009 Railway Clip Manufacturer, E2009 Rail clip made in China

We produce and supply various elastic railway clip, spring blade and SKL tension clamp.

E 2009 Clip

Technical Parameter of The E Clip

Diameter (mm)	Weight (Kg)	Toe Load (Kgf)
12	0.18	200~400
14	0.30	400~600
16	0.44	500~700
18	0.59	800~1000
20	0.76	1100~1400

Material: 60Si2MnA
Fatigue Property: When spring deflection is 9.1mm, fatigue life is up to 5 million cycles without breaking.

Hardness: 42-47 HRC.

Material Reference: DIN 17221, BS970, GB/T 4357, GB/T 4358.

Flamping force 25KN, Fatigue life 3 millions to 5 million

Clip Toe Deflection	Toe LoadRange
10.5mm~14.5mm	1100Kgf~1400Kgf
11mm~14mm	800Kgf~1000Kgf
14mm~15mm	650Kgf~750Kgf

Surface: Plain with anti-rust oil, Black Oxidized, Painting, Zinc Plating, HDG, Dacroment or as per requirement.

MOQ: 5000pcs

Packaging: Less 25KG per woven bag. Fumigation free Pallet. Clients can appoint the way.

We are a leading elastic railway clip manufacturer in China. We can also make other rail fastenings such as railway screw, plastic dowel, rail pad, railway insulator, rail fish bolt, railway base plate, rail anchor, railway shoulder, rail bolt, flat and spring washer, fastening system of E type/SKL type/KP type/ Nabla type. Welcom to choose the railway Clip E2009 from Kunshan ALEX Railway Fastening Co., Ltd.

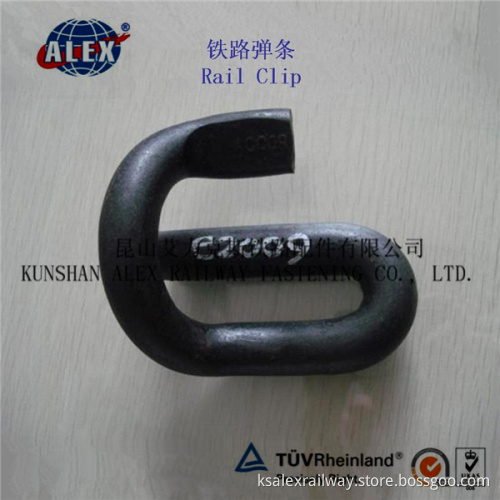

E2009 Railway Clip
