Aluminum Alloy Emergency Stair Chair Foldable for High Buil

Aluminum Alloy Emergency Stair Chair Foldable for High Building Rescue

Quick Detail

Product Name:Aluminum Alloy Emergency Stair Chair Foldable for High Building Rescue

Feature:Foldable,Aluminum Alloy,Foldable
Material : Stainless steel
Maximum Back Angle: 75°
Carton Size (1pc/carton):120*56*33cm
Limited Loading: 159kg
N.W.: 14Kg G.W.:16Kg
Usage:High Building Rescue,Patient Rescue,Ambulance Rescue


Description

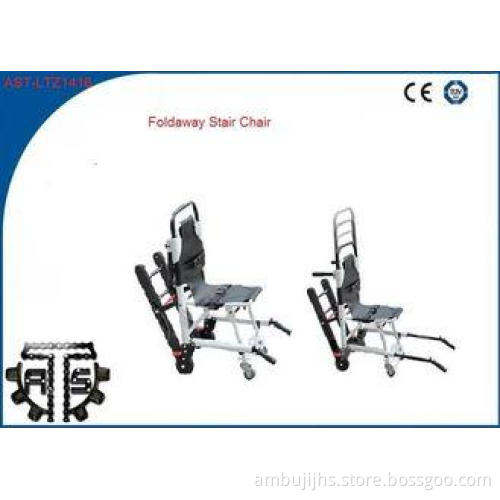

AST-LTZ1416 Foldaway Stair Chair is mainly used for transport wounded patients in high buildings .Foldaway aluminum alloy stair chair used best quality aluminum alloy as frame,good oxford fabric as surface,motor and caterpillars as power.The aluminum alloy from best suppliers in China mainland and motors from China TAIWAN. At the bottom of stair chair have installed two caterpillars.Foldaway Aluminum alloy stair chair is very popular in high buildings’ rescue and evacuation.Thanks to the precise installation of motors and caterpillars ,the aluminum alloy stair chair can transport patients automatically in all buildings, and for the operation of stair chair it only need one first aider. The evacuation foldaway aluminum alloy stair chair can be easily folded, and aluminum alloy is very light material,so the stair chair is very easy operated and applicated. The foldaway aluminum alloy stair chair is very suitable for carrying. AST-LTZ1416 Foldaway Stair Chair’s overall size is 135X45X145 cm,after folded the size only 16X50X30 cm. Loading limit of stair stretcher max 159kg,and the stretcher new weight only 14kg.
AST-LTZ1416 Foldaway Stair Chair is made by high skilled workers and made of good quality material.The stair chair can be folded easily,and the weight of material is very light, so it is easy for taking with first aiders.The foldaway stair chair is the most suitable products for emergency rescue.

Feature

Automatic Stair Stretcher for High Building Patients Carrying is mainly used for high building's lift carrying patients and wounded person.
The structure can be folded and the stretcher structure could get smaller.
It is with four wheels.
The back of the stretcher designed with two folded handles.
Under the front of the stretcher with two flexible uplift rod.
The stretcher is with two pieces of belts to approve the patient's safety during transport process.
It is made of high-strength aluminum alloy materials. It is characterized by its being light-weight, small-sized, easy-carried, use-safely and easy for sterilization and clean.
1. The backrest with three height adjustment, suitable for different height patient.
2. The whole stair stretcher can be up and down the stair at any time and position.
There are three button on the controller, green button- press the button to down stair,release the button to stop;yellow button-press the button to up stair, release the button to stop ;red button- power.the operator can stop the stair stretcher at any time.
3. With retractable front handle-2 pcs, foldable rear handle-2 pcs.
4. With two front wheel and two rear wheels-with brakes.
5. The track angle could be adjust in 3 position,it will make the patient feel better after angle adjustment.
6. It come with battery, could finish upstair about 25 floors with full charging.
7. The whole stretcher can be foldable ,suitable for transportation.


Application

1. High building rescue.

2. Patient movement

3. Evacuationg and rescue

Technical parameters:

Competitive advantage

• We don’t send parts out for pretreatment, all process would be supervised underinspection department
• 7 stages pretreatment meet international standard
• Baking at high temperature after power coating to ensurethe paint finish
• All bolts and screws are of SS material
• Mild steel ERW rectangular tubes or sheets 1.2-2.0mmthickness, meet EU standard
• Process inspections after cold working, acid washing,powder coating and assembling
• Final inspection before loading in random checking
