PE Pipe Production Line
- Payment Type:
- T/T, L/C, Western Union
- Incoterm:
- FOB
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 75 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 120-1400 |
| Supply Ability: | 5 Set/Sets per Month |
| Payment Type: | T/T,L/C,Western Union |
| Incoterm: | FOB |
| Certificate: | CE ISO9001 |
| Transportation: | Ocean |
Specifications
1. Pipe diameter: 16-1600mm
2. Pipe useful: water and gas supply

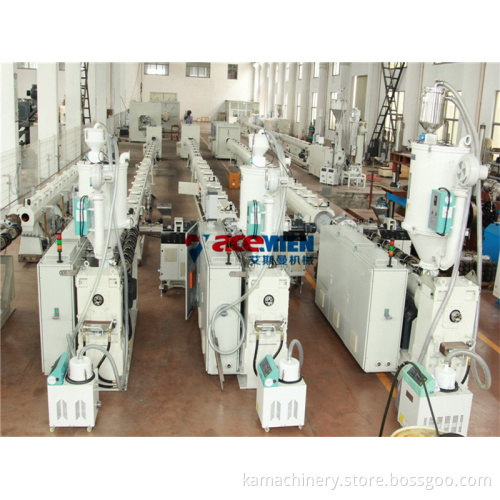

Process flow for pe pipe production machine
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker
Characteristics for pe pipe production machine
Description for pe pipe production machine
This pe pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems
Main technical specification:
Model
Pipe spec(mm)
Extruder
Max. output(kg/h)
Total power(kw)
PE63
φ20-63
SJ65/33
SJ25/25
120~150
110
PE110
φ20-110
SJ65/33
SJ25/25
120~150
110
PE160
φ63-160
SJ75/33
SJ25/25
300~350
190
PE250
φ75-250
SJ75/33
SJ25/25
300~350
200
PE315
φ110-315
SJ75/33
SJ25/25
300~350
230
PE450
φ160-450
SJ90/33
SJ25/25
500~700
320
PE630
φ315-630
SJ120/33
SJ25/25
700~900
540
PE800
φ400-800
SJ150/33
SJ25/25
900~1200
650
PE1000
φ630-1000
SJ150/33
SJ25/25
900~1200
750
PE1200
φ710-1200
SJ90/33+SJ120/33
150/33
900~1400
850
PE1600
φ1000-1600
SJ120/33+SJ120/33 150/33
1000~1400
1150
