stainless steel Gas beverage Filling Unit , Washing Filling

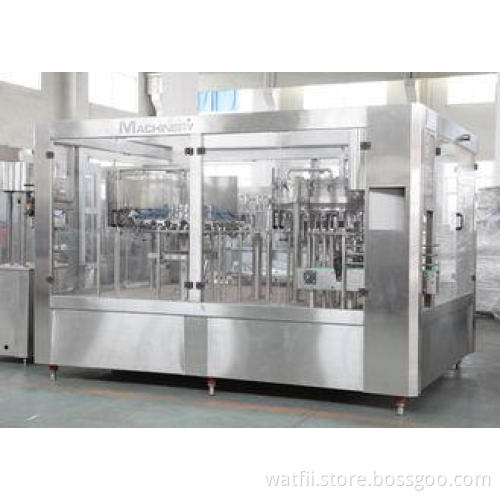

stainless steel Gas beverage Filling Unit , Washing Filling Capping machine

Quick Detail:

Driven Type: Electric Voltage: 110/220/380V

Power: 5.5KW Place of Origin: Jiangsu, China (Mainland)

Brand Name: Renda Dimension(L*W*H): 2500*1900*2400mm

Weight:5T Certification: CE,ISO

Processing: bottle packing machine Suitable Bottle: 0.25-2L

Material: stainless steel Warranty: 1 year

After-sales Service Provided: Engineers available to service machinery overse

Description:

(1)This bottling machine is a unique design combining the three machines of bottle washing, filling and capping in one to decrease main power, to save space and to diminish the air pollution among the three machines.

(2)It is applicable for carbonated drink filled in plastic bottles and capped with plastic caps, with optional capacity from 20000BPH to 28000BPH.
(3)It is easy to change the shape of bottles, which can be done by changing the thumb wheel without adjusting the height of the machine.

(4)Adopting suspensory transmission gear can easily upkeep and be repaired.

(5)The machine case and the parts contacting with the materials are made of stainless steel which ensures the good external look and easy washing.

(6)It uses frequency changer to conrtol the main machine motor. And it has an output number indicating function which is easy to control the adjustment of the output.

Applications:

Applicable for: Cola, Carbonated beverage etc.

Applicable container: various PET bottles with different capacities and shapes

Production capacity: 5000BPH—7000BPH

Specifications:

Competitive Advantage:

--It conveys bottle through clamping the bottle mouth, which is convenient for switching between different capacities of bottles

--Precise control bottling fluid level, powerfully prevent air bubble

--Sanitary class circulating pipe assures the temperature when bottling

--Capping and clamping technology
