3 In 1 Monoblock Soft / Carbonated Drink Filling Machine Fo

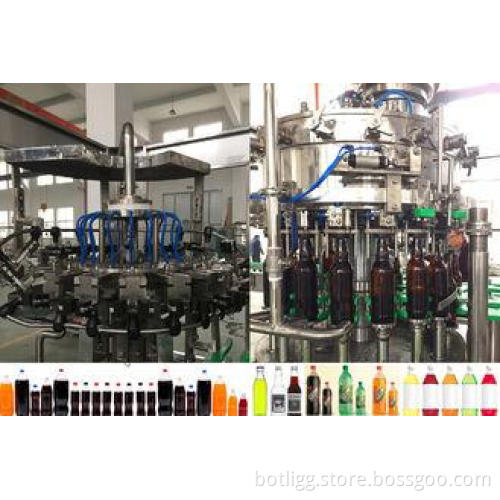

3-in-1 Monoblock Carbonated Drink Filling Machine Rinser Filler Capper for Aerated Beverage

Quick Detail:

• Warranty: 1 year and free spare parts in one year
• Engineers available to service machinery overseas
• Capacity: 4,000 to 5,000 bottles/hour
• We supply 3, 000 to 15,000 bottles/hour
• Bottle Type:200ml to 1500ml
• Washing Head: 18 PCS
• Filling Head: 18 PCS
• Capping Head: 6 PCS
• Machine Type: Rotary Filling Machine
• Full line including: Bottle Feeder, Rinser-Filler-Capper 3 in 1 machine, Lamp Checker, Filled bottle warming machine, Dryer, Labeling Machine, Film Shrink Machine/Carton Packing Machine
• Application: Soda water, Soft drink. Carbonated drink , Energy drink, Beverage drink
• Cap Type: Screw cap, Pressing Cap, Sport cap, Aluminum Cap, Crown Cap
• Bottle Type: PET/PP/PE/HDPE Plastic Bottle, Glass bottle
• Place of Origin: Zhangjiagang city, China near Shanghai
• Brand: BJM
• Bottle Shape: Round/Square/Rectangular/Irregular
• Delivery Time: 30 days
• Shipping: Sea

Specifications:

Description:

1, This washing, filling and capping 3 kinds of jobs can be finished by one machine automatically, by 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

2, Soft Drink filling machine is used in filling soft drink, carbonated drink and etc in. Bottles made of polyester and plastics, glass. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

3, The full filling line includes: Water Treatment system, Blending Equipment, Chiller, Mixing Machine, Rinser-Filler-Capper 3 in 1 machine, Lamp Checker, Filled bottle warming machine, Dryer, Labeling Machine, Film Shrink Machine/Carton Packing Machine and conveyors CIP system. It is a full automatic production line.

​4, The carbonated filling operation is faster and more stable because the Isobaric filling filling operation is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

​5, The advanced OMRON programmed controller (PLC) is used to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

​6, Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.

Competitive Advantage:

1, Carbonated Filling Machine uses neck handling by grippers bottle transmission,

2, Fully automatic rinsing, filling and capping by PLC control;

3, No bottle no rinse;

4, With ring type pressure bearing hydraulic cylinder.

5, With high filling speed and exact liquid level.

6, All product contact parts are made of qualified stainless steel, which wearable, stable with less malfunction.

7, Easy to operate and maintain.

8, PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.

1. Main motor Siemens
2. Liquid level sensor France
3. Pump South Pump(China Famous Brand)
4. Touch screen Taiwan
5. PLC Mitsubishi
6. Inverter Mitsubishi
7. Photoelectric switch Omron
8. Contactor, Circuit breaker Snyder France
9. Bearing NSK Japan
10. Seal Ring U.S
11. Material contact valve, tank, pipe SUS304/316L

All Parts we can custom made for requirement for each customer, like Grundfos Pumps, Sew Motor, Festo Electric Appliance, etc.

• Experienced in this field more than 20 years
• Free technical support&consultation
• Professional & fast after service team
• Warranty: 12 months
• Free spare parts for one year
• Delivery time: in time
• Engineers available to service machinery overseas

Benjamin Machinery pays great attention to technology, such as beer processing and filling technology, high-viscosity filling technology, glass bottle water filling technology.

And we will try our best to satisfy your requirement; your message will be highly appreciated. Welcome to Benjamin Machinery.
