3 In 1 Automatic Water Filling Machine , Electric PET Bottl

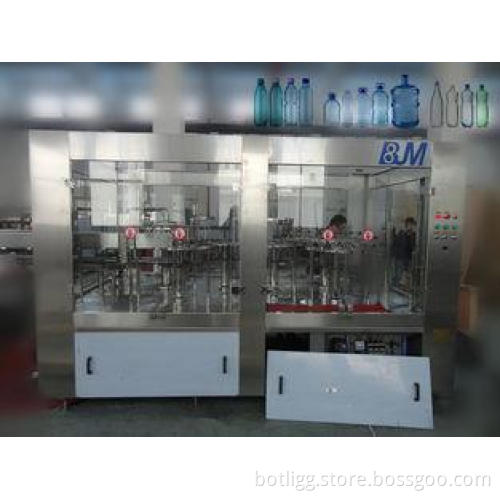

PET Bottle Automatic Water Filling Machine/ Bottling Line With Plastic Screw Cap/Sport Cap

Quick Detail:

• Model: CGF24-24-8 3 in 1 Monoblock
• Place of Origin: Zhangjiagang city, China near Shanghai
• Brand: BJM
• Application: Pure water/Mineral water/Drinking water/Non-carbonated water/Beverage
• Capacity: 8,000 to 10,000 bottles per hour
• Washing Head: 24pcs
• Filling Head: 24pcs
• Capping Head: 8pcs
• Suitable Bottle: 200ml to 1.5L
• Suitable Cap: Screw cap, Pressing Cap, Sport cap
• Bottle Type: PET/PP/PE/HDPE Plastic Bottle
• Bottle Shape: Round/Square/Rectangular/Irregular

Specifications:

Application: Mineral water, Purified Water, Still Water…Non-carbonated water, beverage

Suitable bottle: PET bottle with size 200ml to 1500ml

Bottle Height: Bottle height. Φ160—φ340mm

Bottle Diameter: Bottle dia.φ50-φ90mm

Suitable cap type: Plastic Screw Cap/Pressing Cap/Sport Cap

Supply Capacity: 8,000 to 10,000 bottles per hour(500ml bottle)

Filling style: Mico Low Negative filling type

Filling Temperature: ambient/Room Temperature

Voltage: 220/380V(Custom made)

Power: 50HZ/60HZ(Custom made)

Automatic Grade: Fully Automatic

Driven Type: Electric

Material: High quality SUS304 stainless steel

After-sales Service Provided: Engineers available to service machinery overseas

Description:

1, The water filling machine is used in filling mineral water, purified water, still water etc in bottles made of polyester and plastics. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

2, The washing, filling and capping 3 in 1 job can be finished by one machine automatically, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, and bottle changing is easier.

3, The water filling operation is faster and more stable because the micro gravity filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

4, The full line water filling includes: Washing-filling-capping 3 in 1 machine, lamp checker, label shrinking machine, code printer, hot shrink packing machine/carton packing machine and conveyors. It is a full automatic production line.

5, Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.

1. Main motor Siemens
2. Liquid level sensor France
3. Pump South Pump(China Famous Brand)
4. Touch screen Taiwan
5. PLC Mitsubishi
6. Inverter Mitsubishi
7. Photoelectric switch Omron
8. Contactor, Circuit breaker Snyder France
9. Bearing NSK Japan
10. Seal ring U.S
11. Material contact valve, tank, pipe SUS304/316L

Competitive Advantage:

• 1, Water Filling Machine uses neck handling by grippers bottle transmission,
• 2, Fully automatic rinsing, filling and capping by PLC control;
• 3, No bottle no rinsing;
• 4, International brand Electrical components;
• 5, All material contact parts are made of qualified stainless steel, wearable, stable with less malfunction.
• 6, Using starwheel as its drive mechanism, which realize automatically rinsing, filling and capping.

Benjamin Machinery pays great attention to technology, such as beer processing and filling technology, high-viscosity filling technology, glass bottle water filling technology. And we will try our best to satisfy your requirement, your message will be highly appreciated. Welcome to Benjamin Machinery.
