Basic Info

Place of Origin:	Yangzhou,Jiangsu,China

Product Description

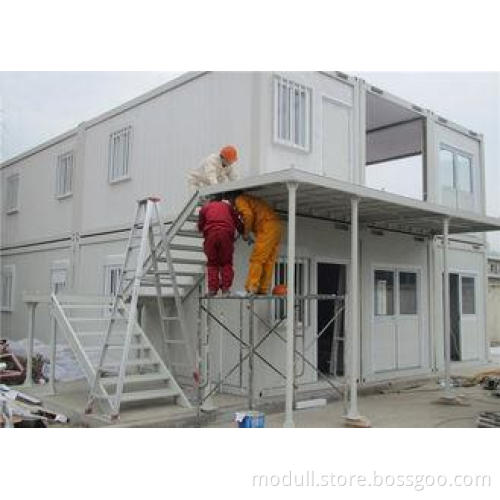

Prefab House Prefabricated Mobile Office Container Building Storage House

Advantage

The steel structure buildings have many advantages,such as nice appearance,shorter construction cycle,non-polluted, low demands of construction materials,low maintenance costs,strong building aseismicity and corrosion resistance and so on. It is mainly used for steel structure workshop and warehouses,large supermarkets,logistics warehouses, showrooms, hangar,villa,prefab house,container house etc.

Specification

No.	Sort	Name	Specification
1	Specification	Length	According to clients' requirement.
2		Width	According to clients' requirement.
3		Ridge height	According to clients' requirement.
4		Inside height	According to clients' requirement.
5	Standard accessory	Wall Panel	75mm EPS sandwich panel, 0.42mm color steel sheet ,density of polystyrene foam (EPS sandwich panel) is 12kg/m3, Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.
6		Roof Panel	50mm EPS sandwich panel, 0.35mm -0.42mm color steel sheet, density of polystyrene foam is 12kg/m3 . Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.553w/·k.
7		Door(D-1)	Steel security door with dimensions of 840x1950mm, furnished with a cylinder lock with 3keys. Doorframe is made of Stainless steel, 50mm thickness
8		Door(D-2)	EPS sandwich panel door with dimensions of 750x2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.
9		Window(W-1)	Color steel sliding window with dimension of 1100mmx800mm, vertically sliding window or horizontally sliding window
10		Window(W-2)	Color steel sliding window with dimension of 1100mmx400mm, vertically sliding window or horizontally sliding window ,
13		Channel beams	material:Q235. Painted
14		Column	material:Q235, Galvanized
15		Roof beam	The trusses are composed of Q235 steel , Galvanized
17	Option	Elevated ceiling	Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel
18		Elevated floor	Steel structure with 14mm plywood
19		Decorative floor	PVC, laminated or ceramic tile
20		Drainage system	Provided plan, design and construction
21		Electric system	Provided plan, design and construction
22	Technical parameter	Bearing load	50kg/m2
23		Wind pressure:	0.5KN/M2
24		Fire proof	B2 grade
25		Temperature resistant	-15--50
26		Earthquake resistant	8-magnitude earthquake

Advantange

Easy assembled
Low cost
Good Isulation
