Easy Installation Commercial Prefab Buildings Modern Prefab

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Yangzhou,Jiangsu,China

Product Description

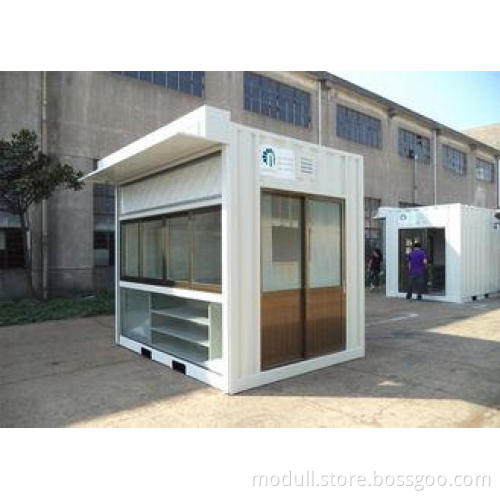

Easy Installation Commercial Prefab Buildings Modern Prefab Homes Eco Friendly For Shop

Description

Flat pack container house is on the base of 20 feet container. Flat pack houses are becoming one of the fastest growing products in the housing market, but make sure you do your research into the type of systems available to suit your particular site and your own personal taste.And the strong firm structure is made of galvanized steel frame, so the life time is more than 30-50 years.

Specifications

Floor

Steel frame	- made from cold rolled, welded steel profiles, 4 mm thick
	- 4 corner casts, welded
	- 2 fork lift pockets (except 30’) - distance 1200mm (internal clearance of fork lift pockets: 240×80 mm)
	- steel cross members, thickness=2mm
Insulation	- 100 mm thick Rock Wool
Subfloor	- 0.5mm thick, galvanized steel sheet
Floor	- 18mm plywood board
Floor	- 1.8mm PVC floor - flammability class B1 - hardly combustible - smoke density class Q1 - low smoke emission - wear resistance factor: T level

Roof

Steel frame	- made from cold rolled, welded steel profiles, 3mm thick
	- 4 corner casts, welded
	- steel cross members, thickness=2mm
Roof cover	- 0.5mm thick, galvanized steel sheet - 360 degree seaming at joint of roof panels
Insulation	- 100 mm thick Rock Wool
Ceiling	- 10 mm chipboard (V 20), laminated on both sides, white - the chipboard complies with the emission value E1
CEE connector	- sunken in frame on short end side

Insulation

Rockwool	- density:120kg/m3
	- flammability class A- non combustible - smoke density class Q1 - low smoke emission
	- certificated: CE & GL
Neopor^R	- density:18kg/m3
	- flammability class B1- non combustible - smoke density class Q1 - low smoke emission
	- certificated: CE & GL

Coatings (Optional)

DecoCoating

Special coating can be applied on top of sandwich wall panel and make the external wall surface looks like plastering finishes or timber finishes. That makes the container house cozy and less industry look.

Assembly Process

Easy to be Assemble and disassemble. Four workers can complete one unit in half day.

Packing and Transportation

From our factory to overseas client, there are two ways to delivery the houses. If your

port can accept SOC (Shipper’s Owned Container), 4 standard cabins can be packed as

a 20ft container and shipped naked. If can not, 7standard cabins can be loaded into one

40ft HC.

From the dealer’s workshop to the client’s place, it can be delivered by 6m long truck

after assembly. The width and height are within traffic limitation.

Competitive Advantages

We are the biggest manufacturer of prefab house in north China, and we are the famous building materials production base in China also. We could provide deisgn, manufacture, logistic and on-site instruction services. We are specialist on prefabricated house elements, such as Sandwich Panel, Steel Structure, and Metal Cladding.

1	Strong Structure	All parts are galvanized, lifetime more than 30 years. Can be stacked up to 3 floors.
2	Modular Design	They are able to stack each other and fixed through high tensile screws.
3	Factory Quick Respond	Modular design minimized and standardized part. That makes quick combination and respond possible.
4	Minimized Site Work	The assembly only requests simple tools. That helps to save equipment cost and labor cost. No cast-in-situ concrete slab is needed. The original floor such as turf will not be damaged.

Application

Flat pack container house is widely applicated for office, accommodation, hotel, hospital, commercial kiosk, parlor, bedroom, study room, locker room, ablution room, school, shower room, kitchen, dining room, works camp, exhibition, dormitory, villa, carport, house, coffee room, booth, sentry box, guard house, shop, toilet, warehouse, workshop and so on.
