RHS EN 10296-1 Cold Drawn ERW Steel Tube Round / Square Shape For Engineering

Quick Detail:

Standard: EN 10296-1
Size:(mm)
Out Dimensions:

6mm -350mm (Round)

20mm*20mm – 400mm*400mm(Rectangular)
Wall Thickness: 0.8mm –35mm
Length: Fixed(6m,9m,12,24m) or normal length(5-12m)


Description:

EN 10296-1 Welded steel tubes for pressure purposes

Standard:
EN 10296-1, GB700-88, EN10219, JIS G3101

Material Grade:
Q235, Q345, S235JR, S275JR, SS400,20# ,16MN, ST37 ST52, etc

Packing:
Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection
Inspection and Test:
Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test
Surface treatment:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting
Mark:
Marking or mechanical stamp on each piece of tube to be confirmed or as requested
Method of manufacture:
Electric-Resistance-Welded / Cold Drawn

Delivery condition:

The tubes shall be supplied in one of the following delivery conditions

a) Cold finished/hard (cold finished as drawn): BK;

b) Cold finished/soft (lightly cold worked): BKW

c) Annealed: GBK

d) Annealed (including de-scaling): GZF;

e) Normalized: NBK

f) Normalized (including de-scaling): NZF.


Applications:

EN 10296-1 Welded circular steel tubes for mechanical and general engineering purpose,Non-alloy and alloy steel tubes.

Competitive Advantage:

1) Fast delivery
2) Non-standard sizes and made-to-order
3) Small min order quantity
4) Economical Pricing
5) Quality confirming to International Standards
6) Material Test Certificates for Quality Assurance
7) Technical Qualified After Sales
8) Excellent Delivery Conditions

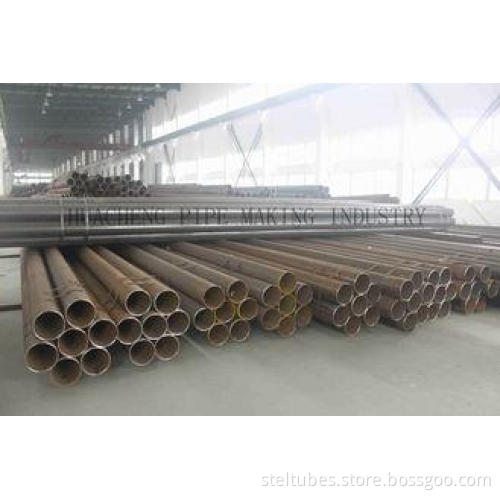

Factroy Pictures:


Pipe & Tube Processing

Factory Equipments:


Production Line:

Quality Control:



Steel Pipe & Tube Application:

Package:
Export Standard / Wooden Box

Main Certificates:
PED ISO BV TUV etc.
