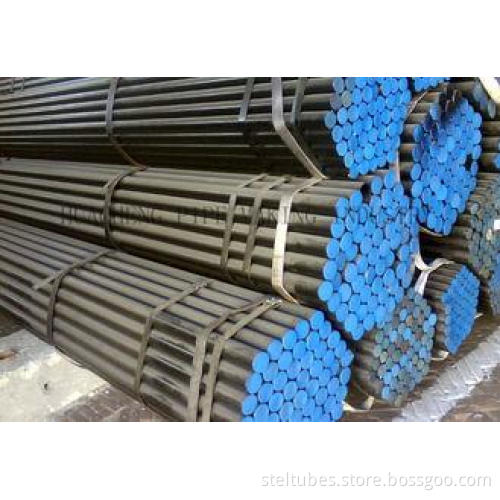

EN 10217-1 Welded ERW Steel Tube / Annealed Alloy Steel Pip

EN 10217-1 Welded ERW Steel Tube / Annealed Alloy Steel Pipe Dimension 6mm - 350mm

Quick Detail:

Standard: EN 10217-1
Size:(mm)
Out Dimensions: 6mm -350mm
Wall Thickness: 0.8mm –35mm
Length: Fixed(6m,9m,12,24m) or normal length(5-12m)

Description:

EN 10217-1 Welded steel tubes for pressure purposes

Standard:

EN10217-1, EN10210-1, EN10216-1/2

ASTM A106M,A53/A333ASTM A192,ASTM A209,ASTM A210

API 5L,ASTM A519/ASTMA179
DIN 1629,DIN17175
JIS G3454,JIS G3455
JIS G3456

Material Grade:

A-53Gr.B/C A-106Gr.B/C A-333Gr.1&6
API5L Gr.B /X 42 / X52 /X56/ X60 /X 65 /X 70

A519 MT 1010,MT 1015,MT 1020,MTX 1020,1008,1010,1012,1015,1016,1017,1018,

1019,1020,1021,1022,1025,1026,1030,1035,1040,1045,1050,1518,1524,1541

4118,4130,4135,4137
P195TR1,P195TR2,P235TR1,P235TR2,P265TR1
265TR2,P195GH,P235GH,P265GH
E235,E275,E315,E355a,E470,C22E,C35E,C45E,C60E,38Mn6
S235JRH,S275JOH,S355JOH,S355J2H,S355K2H
ST37.0,ST44.0,ST55,ST52.0,CK45
ST35.8,ST45.8
STPG 370,STPG 410,STS 370,STS410,STPT 370,STPT 410/480

Packing:
Beveled/black painting/ plastic caps/ in bundles/ steel strips/ wooden protection

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength, Yield Strength,Elongation, Flaring, Flattening, Bending, Hardness, Impact Test),Surface and Dimension Test,Nodestructive Test, Hydrostatic Test

Surface treatment:
Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting

Mark:
Marking or mechanical stamp on each piece of tube to be confirmed or as requested

Method of manufacture:

Electric-Resistance-Welded

Delivery condition:

The tubes shall be supplied in one of the following delivery conditions

a) Cold finished/hard (cold finished as drawn): BK;

b) Cold finished/soft (lightly cold worked): BKW

c) Annealed: GBK

d) Annealed (including de-scaling): GZF;

e) Normalized: NBK

f) Normalized (including de-scaling): NZF.

Applications:

EN 10217-1 Welded steel tubes for pressure purpose. Non-alloy steel tubes with specificed room temperature properties.

Competitive Advantage:

1) Fast delivery
2) Non-standard sizes and made-to-order
3) Small min order quantity
4) Economical Pricing
5) Quality confirming to International Standards
6) Material Test Certificates for Quality Assurance
7) Technical Qualified After Sales
8) Excellent Delivery Conditions

Factroy Pictures:

Pipe & Tube Processing

Factory Equipments:

Production Line:

Quality Control:

Steel Pipe & Tube Application:

Package:

Export Standard / Wooden Box

Main Certificates:

PED ISO BV TUV etc.
