JIS G4805 SUJ2 Seamless Bearing Steel Tube with ISO Certificate , Cold Drawing

Quick Detail:

Products: JIS G4805 SUJ2 Stainless Bearing Steel Tube
Standard: GB / SKF/ ASTM / DIN / JIS / BS
Size(mm):

OD:8mm ~ 101.6mm

WT:1.0mm ~ 10mm

Length: Fixed(6m,9m,12,24m) or normal length(5-12m)

Description:

1. JIS G4805 SUJ2 main features and application
JIS G4805 SUJ2 is a kind of high-carbon chromium bearing steel. It has good synthesis performance.Quenching and tempering will make SUJ2 steel high and even hardness, and excellent abrasive resistance and fatigue strength. Good hot workability,after spheroidizing annealing, SUJ2 has good machinability, sensitive to white dot.
JIS G4805 SUJ2 is mainly used to manufacture internal-combustion engine,electric locomotive,machine tool,tractor,steel rolling equipment,driller,steel balls,roller,and axle sleeve of rail truck, mining machine spiale.
2. The equal material of JIS G4805 SUJ2 in different standard.

JIS G4805	GB/T18254	ΓOCT 801	ASTM A295	ISO683-17	DIN 17230	NF A35-565
SUJ2	GCr15	IIIX15	52100	1	100Cr 6	100Cr 6

JIS G4805 SUJ2 chemical composition by %:

C	Si	Mn	Cr	Mo	P	S	others
0.95-1.05	0.15-0.35	0.25-0.45	1.4-1.65	≤0.1	≤0.025	≤0.02	Ni≤0.30 Cu≤0.25 Ni+Cu≤ 0.5

JIS G4805 SUJ2 mechanical property and delivery condition:

Category	Standard	Delivery Condition	Anneal (soften or spheroidizing ) hardness HBW
Hot rolled bar	JIS G4805	Hot rolled,hot rolled soften annealing,hot rolled spheroidizing annealing,hot rolled spheroidizing annealing skin,hot rolled soften annealing skin.	179-207
Forging bar
Cold drawn bar		Cold drawn or burnishing
Hot rolled tube/pipe		Hot rolled,hot rolled annealing burnishing
Cold drawn tube/pipe		Cold drawn
Steel wire rod		Hot rolled or spheroidizing annealing
Wire		Annealing	Quenching HRC≥62
Wire		Annealing	φ≤10mm Rm :590-760MPa Φ>10mm HBW≤229
		Phosphorus cold drawn	φ≤10mm Rm :≤ 850MPa Φ>10mm HBW≤229
		Cold drawn,burnishing	--
Hot rolled or Forging bar,cold drawn bar and wire		Hot rolled,cold drawn,annealing	HBW 179-207

Applications:

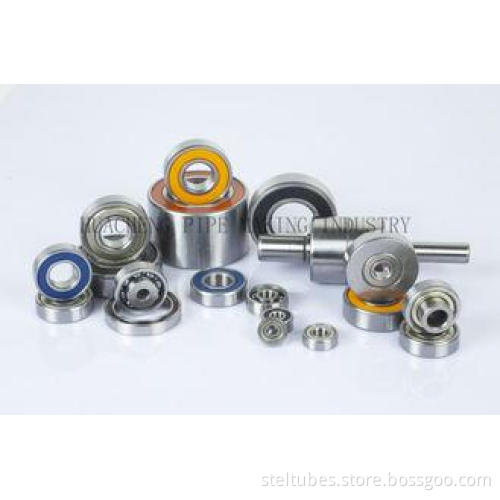

1,Mainly used for manufacturing ordinary rolling bearing ring.

2,other applications such as used for automotive industry and bearings in rotating machinery.

Competitive Advantage:

Huacheng Pipe Making Company is one of the largest seamless steel pipe manufacturers in China.We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.With good quality and competitive price, we believe we could be your reliable supplier.
