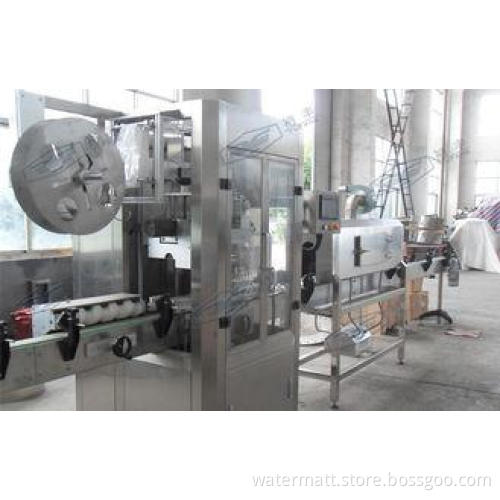

Automatic Round Bottle Labeling Machine Vertical Sleeve Labeler Machine
Quick Detail:
1, Bottle type: Plastic / Glass bottle
2, Label type: Sleeve label
3, Automation: TOTALLY automatic
4, Capacity: 12000BPH
Specifications:
| Voltage | AC220V, 50/60HZ, 1.5-2KW, single phase |
| Production speed | 250BPH for client’s 30-60-100ml bottles ,speed slightly faster when label is shorter |
| Diameter of bottle body | ∮28mm-∮125mm |
| Length of label | 30mm-250mm |
| Thickness of label | 0.035mm-013mm |
| Material of label | PVC, PET, OPS |
| Size | L2000MM*W850MM*H2000MM |
Electrical apparatus:
| AC motor | Panasonic | MBDDT2210003 |
| PLC | Mitsubishi | FX1S-30MR |
| Photoelectricity | SUNX Japan | CX442 |
| Photoelectricity | SUNX Japan | FX301 |
| Contactor | Schneider French | LCD0610 |
| Approach switch | AUTONICS | PR12-4DN |
| Transducer | Sanki-Taiwan | S800-2S0.4G |
| Touch screen | Esayview-Taiwan | TK6070IH2 |
| Air switch | DELIXI | DZ47-2P20A |
| Auxiliary relay | DELIXI | HH54P-DC24V |
Competitive Advantage:
1. One year warranty for the whole system
2. Free equipment installation and debugging
3. After one year, we can help you to maintain the machine and the accessories are provided only one the cost price
4. Every 3 years, we can help to overhaul the machine free (Labor)
5. We can provide internship service and help you train the operator and mechanic
6. Free production technology and process configuration
7. We can help you to design the production line, workshop and provide turn-key project
-
