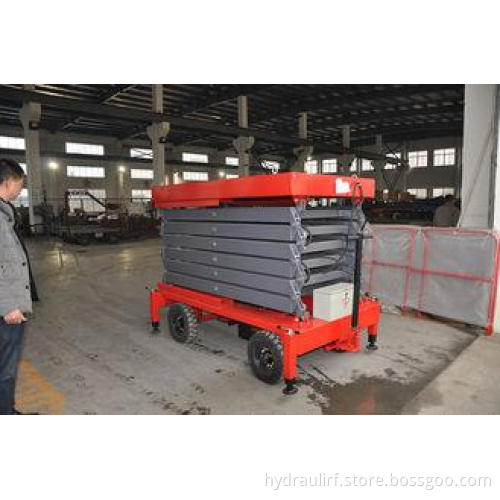

450Kg Loading Capacity Hydraulic Mobile Scissor Lift with 6

450Kg Loading Capacity Hydraulic Mobile Scissor Lift with 6 Meters Platform Height

Quick Detail:

Description:

Mobile Scissor Lift has four outriggers onthe chassis, and all the conections between chassis and outriggers are having locking pin. Please do not lift the machine when the outriggers do not totally open and fix to the ground.

Main Features:

1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.

Safety Precaution:

1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform

Major Parameters

• Model: SJY0.45-6
• Loading Capacity 450kg
• Maximum Height 6000mm
• Minimum Height 1100mm
• Platform Size 1850*880mm
• Lifting Power 1.5kw
• Power Voltage 1phase/220V/50HZ
• Lifting Time 55s
• Cylinder Ф80(2Pcs)
• Gear Pump 6ml/r
• Total Weight 650kg
• Measurement 1900*1080*1100mm

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack ,NOK sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Tire: Ø400-8 Inflated tires
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

• Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
• Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
• Extension Platform
• Rubber Solid Tire
• Flame Proof Control Cabinet

Applications:

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.

Why to choose Xunte Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience

Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material

A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

A: What is the delivery time for your goods?

B: it is 30days after order confirmation

A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

A: How long is your quality guarantee period?

B: We have one year warranty.
