Portable Stationary Type Loading Dock Ramp for Loading Carg

Portable Stationary Type Loading Dock Ramp for Loading Cargo , 10000Kg

Quick Detail:

Description:

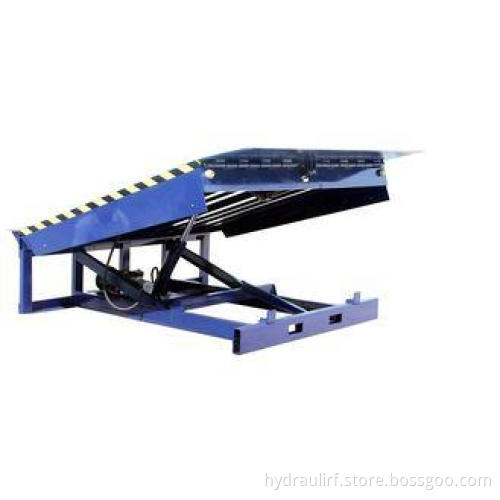

• Stationary Dock Ramp is a fixed loading equipment and widely used as a bridge between platform and the truck. It allows the forklift to move conveniently. One side of this equipment has the same height with platform, and the other side connecting with the truck and it can adjust height according to different truck and different carriage in the process of loading .Its size and loading ability can be designed according to customer's requirements.

Main Features:

• 1. Reinforced gusseted lip
• 2. Heavay duty deck construction
• 3. Anti-skid high-strength chequered platform and lip.
• 4. Full width one -piece lip hinges pin and tube
• 5.Heavy duty high pressure cylinders
• 6.First class hydraulic power unit, good seal capacity and long life
• 7. Rubber Bumpes
• 8. Full range toe guard

Major Parameters

• Loading Capacity 10000kg

• Working Range ±300mm

• Platform Size 2500*2300mm

• Lifting Power 0.75kw

• Power Voltage 380V/50HZ

• Pit Measurement 2520*2030*600mm

Configurations:

• Electric system: Schneider contactor, SANLICO button, CHNT electrical
• Hydraulic System: Hycman brand power pack ,Xunte made cylinder, Trellebogr sealing
• Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
• Platform Surface : Antiskid checkered plate
• Main Support: 10# I beam
• Labial Plat: 14mm plate and 3mm checkered plate
• High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

Optional Configuration:

• Hydraulic Power Pack: Italy brand:Microhy

Applications:

1. Site: Work Shop, logistic center etc.

2. Dock Leveler Purpose: Loading Cargo etc.

Why to choose XunteStationary Dock Ramp?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience
