8USD High Quality LED Tube Light T8 1.2M 1500Lm Ra>80
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Basic Specification
| Lux | > 1300lux |
|---|---|
| Life | >30000 hours |
| Package | Yes |
| Light Source Chip | Epistar |
| Tube Diameter | T8 |
| Length | 120cm |
| Lamp Base | G13 |
| Color Tones | Cool Color |
| Illuminant | SMD |
| Power | 16W |
| Voltage | 220V |
Detail Description

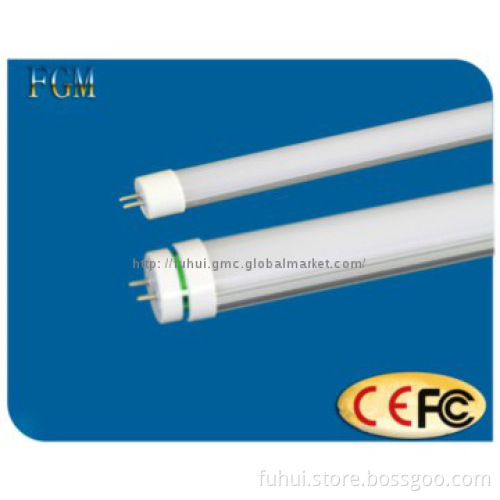

Product Name：1.2M SMD LED tube with 3528SMD, 250 degree beam angle, patent product,2 20V.
◆Actual lifespan of 50,000 hours, 3 years\' warranty
◆Dimension:Dia26xL1,200mm
◆LED Qty:240PCS 3528 SMD LEDs
◆Power:16W
◆Luminous Flux: >1300Lm
◆View Angle:250 Degree view angle
◆Colour: Pure white/daylight, cool white, warm white
◆Tube Material:Aluminum Alloy and Frosted PC
◆Anti-glare design
◆.PCB board: Aluminum PCB board
◆Frequency:50-60HZ
◆Power-supply efficiency:>93%
◆Accuracy of constant current:3%
◆Material: Optimum thermal management, aluminum PCB board, aluminum backbone with milk PC cover, high quality LED chips
◆Operation Temperature: - 30 ° C ~ 50 ° C
◆Storage Temperature:‐40° C—85° C
◆Working Humidity:< 95%
◆Life time: 50K hours
◆Standard:CE, FCC approved
◆ Environment friendly
◆ Energy saving
◆ No UV, no infrared, no other Hazardous Substances
◆ No noise,no flicker, resistance from vibration
Product Description and Feature
1.Adopt high quality 3528SMD chips with have high lumen and almost zero brightness decay
2.Anti-glare design, 250 degree beam angle,the same lighting performance as the traditional fluorescent tube
3.Aluminum PCB board is good for heat dissipation
4. Aluminum backbone and milk PC cover
5.Strict quality controlling,lighting aging for 48 hours and complete inspection before shipping
Usage instruction:
1.Take out from package carefully;
2.Check if have any damage, don\'t try to use any damaged products;
3.Read the label parameter carefully before installation and make sure the voltage & current are correct;
4.Indoor use only;
5.Don\'t vibrate tube
6.Don\'t disassemble the tube if have no authorization;
7.Don\'t store tubes in humidity environment.
Installation instructions
1.Firstly please turn off the power before install the led tube.
2.Take down the tradition fluorescent tube ,Cut off or directly Take off the starter and ballast from the tradition fluorescent tube fixture.
3.Then, according below wiring diagram to connect the LED tube on the tradition fixture.
4.Make sure everythings are correctly, and than turn on the power, the led tube will light.
◆Actual lifespan of 50,000 hours, 3 years\' warranty
◆Dimension:Dia26xL1,200mm
◆LED Qty:240PCS 3528 SMD LEDs
◆Power:16W
◆Luminous Flux: >1300Lm
◆View Angle:250 Degree view angle
◆Colour: Pure white/daylight, cool white, warm white
◆Tube Material:Aluminum Alloy and Frosted PC
◆Anti-glare design
◆.PCB board: Aluminum PCB board
◆Frequency:50-60HZ
◆Power-supply efficiency:>93%
◆Accuracy of constant current:3%
◆Material: Optimum thermal management, aluminum PCB board, aluminum backbone with milk PC cover, high quality LED chips
◆Operation Temperature: - 30 ° C ~ 50 ° C
◆Storage Temperature:‐40° C—85° C
◆Working Humidity:< 95%
◆Life time: 50K hours
◆Standard:CE, FCC approved
◆ Environment friendly
◆ Energy saving
◆ No UV, no infrared, no other Hazardous Substances
◆ No noise,no flicker, resistance from vibration
Product Description and Feature
1.Adopt high quality 3528SMD chips with have high lumen and almost zero brightness decay
2.Anti-glare design, 250 degree beam angle,the same lighting performance as the traditional fluorescent tube
3.Aluminum PCB board is good for heat dissipation
4. Aluminum backbone and milk PC cover
5.Strict quality controlling,lighting aging for 48 hours and complete inspection before shipping
Usage instruction:
1.Take out from package carefully;
2.Check if have any damage, don\'t try to use any damaged products;
3.Read the label parameter carefully before installation and make sure the voltage & current are correct;
4.Indoor use only;
5.Don\'t vibrate tube
6.Don\'t disassemble the tube if have no authorization;
7.Don\'t store tubes in humidity environment.
Installation instructions
1.Firstly please turn off the power before install the led tube.
2.Take down the tradition fluorescent tube ,Cut off or directly Take off the starter and ballast from the tradition fluorescent tube fixture.
3.Then, according below wiring diagram to connect the LED tube on the tradition fixture.
4.Make sure everythings are correctly, and than turn on the power, the led tube will light.
Application:
Office, supermarket, school, hospital, lobby, hall, square, parking, and so on.
Additional Information
| Payment Terms | L/C, T/T |
|---|---|
| Minimum Order | 100 |
| Lead Time / Delivery Time | 15 Day(s) |
| Sample Available | YES |
| Delivery Details | 30% deposit paid in advance and 70% balance paid off before shippment |
| FOB Port | Shanghai |
| Loading Info | By sea or by air |
| Packing Info | 25pcs/carton |
| Target Market(s) | North America, Oceania, Southeast Asia, Eastern Europe, Africa(except Middle East), Hong Kong/ Macao/ Taiwan, Latin America, Japan & Korea, Middle East & South Asia, Mainland China, Western & Southern Europe, Northern Europe, Central & Southern Asia, Middle East |
