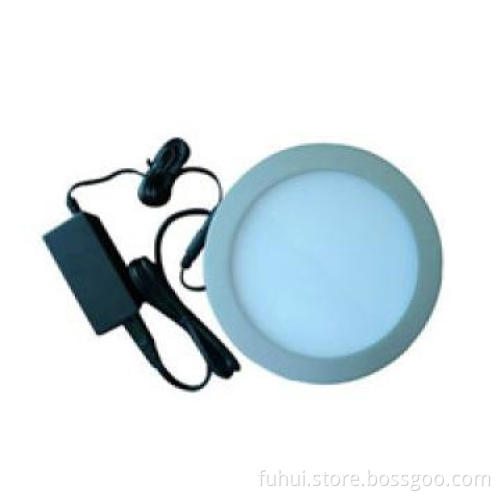

Ultra Thin LED Panel light 10w
Your message must be between 20 to 2000 characters
Contact NowBasic Specification
| Shape style | round and square |
|---|---|
| Finishing Color | Silver |
| Style | Modern |
| Application | Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room |
| Voltage | 220V |
| Material | Aluminum |
| Light Source | LED |
Detail Description
Specification
| Type No. | Wattage | LED Type | LED Qty | Lumen | Actual Size(R*H) |
FH-PL-R240B |
18W | 12-14lm SMD3528 | 160pcs | 1260±10% | Dia.240*13.5mm |
FH-PL-R197B |
12W | 12-14lm SMD3528 | 104pcs | 850±10% | Dia.197*16mm |
FH-PL-R197A |
10W | 8-9lm SMD3528 | 104pcs | 700±10% | Dia.197*16mm |
FH-PL-R175B |
10W | 12-14lm SMD3528 | 88pcs | 700±10% | Dia.175*13.7mm |
FH-PL-R175A |
8W | 8-9lm SMD3528 | 88pcs | 550±10% | Dia.175*13.7mm |
Electrical Parameters:
LED Panel Output Voltage: 24-28VAC
External Driver Input Voltage: 100-240Vac
Frequency: 50/60Hz
Optical Parameters:
Light Efficiency: 75-85LM/W
Color Temperature: Pure white, Warm white, Amber white
Other Parameters:
Product Patents: Yes
Operating Temperature: -20°C-50°C
Storage Temperature: 0-35°C
Appearance: Frosted
Main Material: Aluminum Alloy+ Optical PMMA
IP Rating: IP40
Life Span: 50,000hours
Certificates: CE RoHS UL Driver
Warranty: 3 years
a. Within the warranty period, Gielight provides free repairing service. If the certain item can not be repaired, Gielight will offer the new one for replacement at no extra cost.
b. Within the warranty period, Gielight bears the shipping cost back and forth for replacing the defective goods, on condition that the defection rate equals to or exceeds 2% of the ordered quantity for each shipment.
Size Instruction:
The size of hole on the ceiling:
Additional Information
| Payment Terms | T/T, L/C |
|---|---|
| Minimum Order | 50 |
| Lead Time / Delivery Time | 5 Day(s) |
| Sample Available | YES |
| Delivery Details | 3 working days for samples, 10-15 working days for 500-1000pcs. |
| FOB Port | Shanghai |
| Loading Info | By express, such as DHL UPSBy sea |
| Target Market(s) | Africa(except Middle East), Eastern Europe, Hong Kong/ Macao/ Taiwan, Japan & Korea, Latin America, Mainland China, Middle East, North America, Northern Europe, Oceania, Central & Southern Asia, Southeast Asia, Western & Southern Europe |
