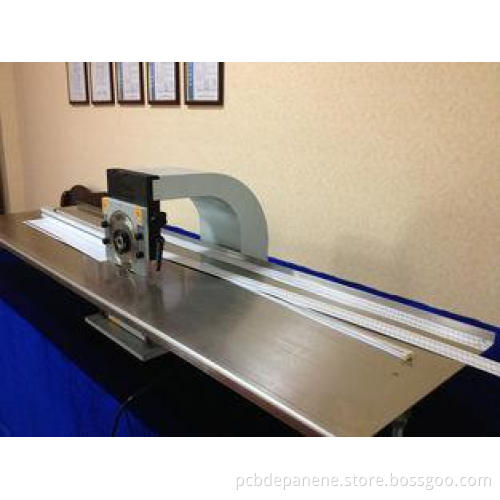

Aluminum / Copper Board PCB Depanelizer Equipment AC 110 Volt
PCB Depanelizer Equipment Specification:
| Model No.: | YSVC-1S |
| Machine Dimension: | 521 x 2400 x 410 mm |
| Platform: | 1.2M or 2.4M |
| Maximum Length of Cutting: | Unlimited |
| Cutting Speed: | 0-1000mm / s |
| Cutting Thickness: | 0.8-3.5mm |
| Voltage: | 220VAC / 110VAC |
| Weight: | 65 kg |
PCB Depanelizer Equipment Feature:
1. No length limited when cutting
2. Accuracy adjusting function of upper and lower blade
3. Use high quality material. i.e.motor, blade
4. Normally the blades can be used 1 year
5. Accessories are available for purchase
PCB Depanelizer Equipment Application:
1. Aluminum base board
2. Copper substrate
3. FR4
4. Glass fiber board
PCB Depanelizer Equipment Maintenance:
1. Take off the power botton and clean the machine after finish working
2. Be careful to protect the upper and lower blade
3. Move the blades and protect them with machine oil
4. Check the screw fastening time to time
